MBR20100CT ... MBR20200CT

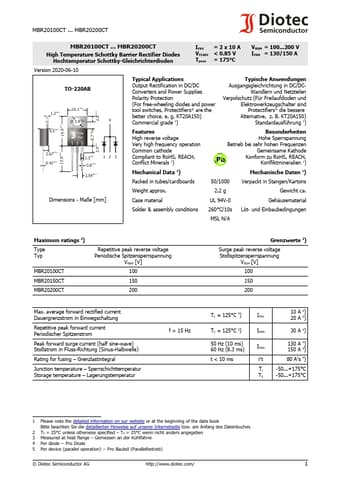

MBR20100CT ... MBR20200CT High Temperature Schottky Barrier Rectifier Diodes
Hochtemperatur Schottky-Gleichrichterdioden
IFAV VF100V Tjmax
= 2 x 10 A < 0.85 V = 175°C
VRRM = 100...200 V IFSM = 130/150 A
Version 2020-06-10
TO-220AB
1.2±0.2 4.5±0.2
2.67±0.2 0.42±0.1
13.9±0.3
14.9±0.7
10.1±0.3
2.8±0.3
Ø 3.8±0.2
4
4
Type Typ
123
8.7±0.3 3.9±0.3
1.3±0.1 0.8±0.2
123
2.54±0.1
Typical Applications Output Rectification in DC/DC Converters and Power Supplies Polarity Protection (For free-wheeling diodes and power tool switches, Protectifiers® are the better choice, e. g.
MBR20200CT Datasheet
