MBR20200CTR - 20 Amperes Heat Sink Dual Common Anode Schottky Half Bridge Rectifiers

This page provides the datasheet information for the MBR20200CTR, a member of the MBR2045CTR 20 Amperes Heat Sink Dual Common Anode Schottky Half Bridge Rectifiers family.

Datasheet Summary

Features

  • Standard MBR matured technology with high reliablity Low forward voltage drop High current capability Low reverse leakage current High surge current capability.

📥 Download Datasheet

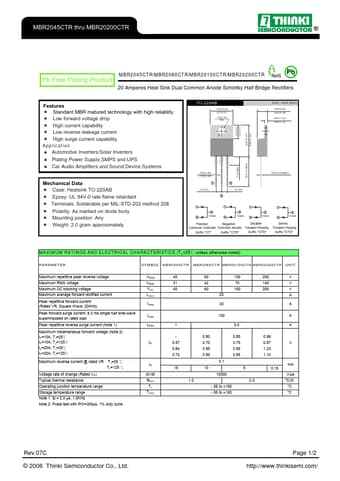

Datasheet preview – MBR20200CTR

Datasheet Details

Part number MBR20200CTR
Manufacturer Thinki Semiconductor
File Size 786.37 KB
Description 20 Amperes Heat Sink Dual Common Anode Schottky Half Bridge Rectifiers
Datasheet download datasheet MBR20200CTR Datasheet
Additional preview pages of the MBR20200CTR datasheet.
