SK34SMB-Q SMD Schottky Barrier Rectifier Diodes

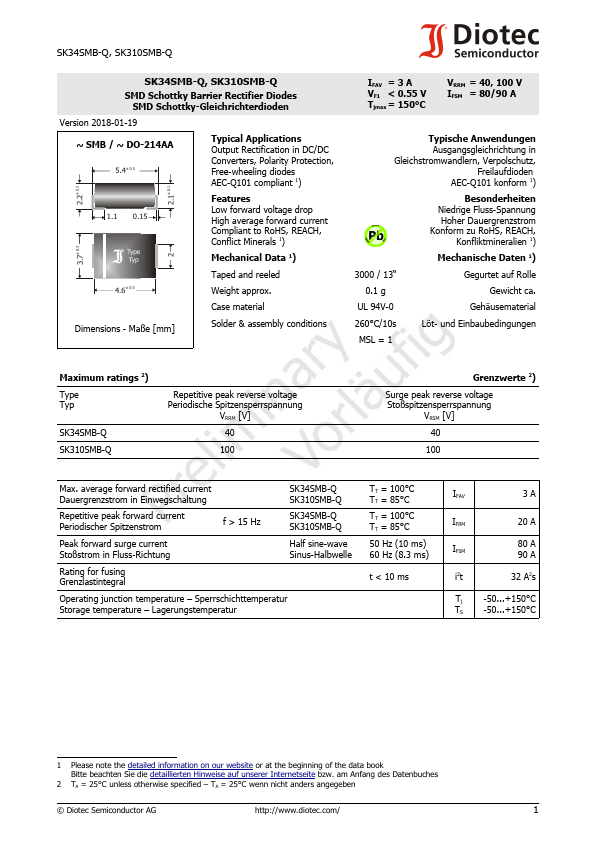

📥 Download Datasheet  Datasheet Preview Page 1

Description

SK34SMB-Q, SK310SMB-Q SK34SMB-Q, SK310SMB-Q SMD Schottky Barrier Rectifier Diodes SMD Schottky-Gleichrichterdioden Version 2018-01-19 ~ SMB / ~ DO-.

📥 Download Datasheet

Preview of SK34SMB-Q PDF

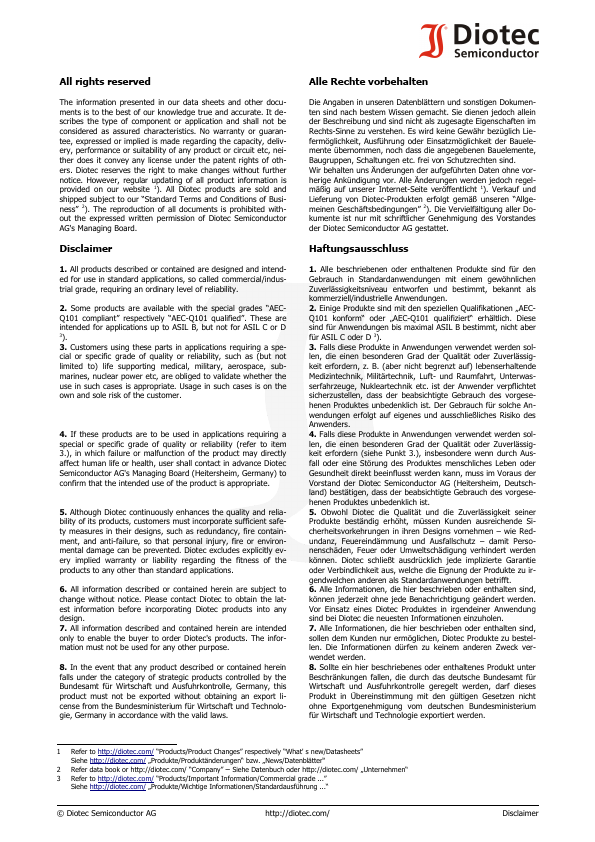

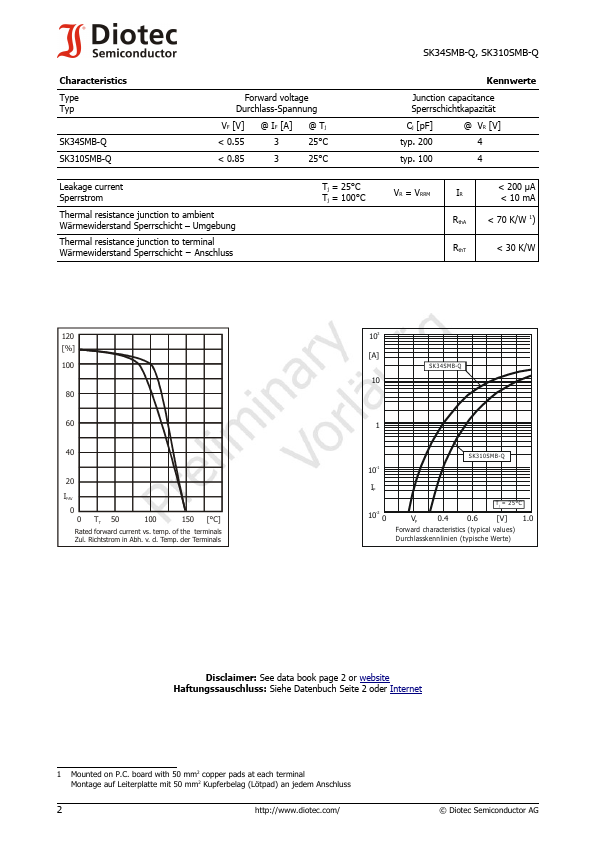

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SK34SMB-Q
Manufacturer
Diotec
File Size
267.28 KB
Datasheet
SK34SMB-Q-Diotec.pdf
Description
SMD Schottky Barrier Rectifier Diodes

Features

* Low forward voltage drop High average forward current Compliant to RoHS, REACH, Conflict Minerals 1) Mechanical Data 1) 3.7± 0.3 Taped and reeled 4.6± 0.5 Weight approx. Case material Dimensions - Maße [mm] Solder & assembly conditions IFAV = 3 A VF1 < 0.55 V Tjmax = 150°C VRRM = 40, 100 V
