Z3SMC100, Z3SMC6.8 Datasheet - Diotec

Z3SMC100 SMD Zener Diodes

Z3SMC6.8 Z3SMC200 Z3SMC6.8 Z3SMC200 SMD Zener Diodes SMD Zener-Dioden Ptot = 3 W VZ = 6.8 V 200 V Tjmax = 150°C Version 2016-03-22 ~ SMC / ~ DO-214AB 7.9±0.2 1.2 0.15 2.1±0.2 Typical Applications Voltage stabilization and regulators (For overvoltage protection uniand bi-directional or higher power dissipation see TVS series 1.5SMC or 3.0SMC) Commercial grade 1) Typische Anwendungen Spannungsstabilisierung und -regler (Für Überspannungsschutz uniund bidirek.

Z3SMC100 Features

* Besonderheiten High power dissipation Hohe Leistungsfähigkeit Type Typ 3 VZ up to 200 V VZ bis zu 200 V Compliant to RoHS, REACH, Conflict Minerals 1) WEEE RoHS Pb ELV Konform zu RoHS, REACH, Konfliktmineralien 1) Mechanical Data 1) Mechanische Daten 1) 7.2±0.5 Taped and reeled 3000

Z3SMC6.8-Diotec.pdf

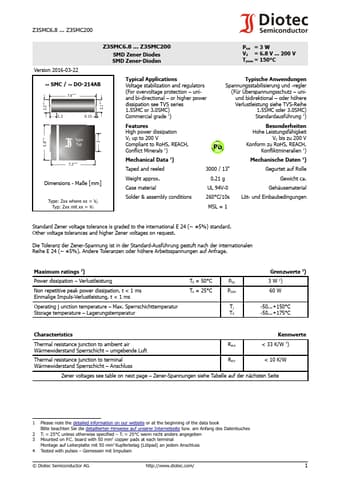

Z3SMC100 Datasheet Preview — This datasheet PDF includes multiple part numbers: Z3SMC100, Z3SMC6.8. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

Z3SMC100, Z3SMC6.8

Manufacturer:

Diotec

File Size:

134.06 KB

Description:

Smd zener diodes.

Note:

This datasheet PDF includes multiple part numbers: Z3SMC100, Z3SMC6.8.
Please refer to the document for exact specifications by model.
