Z3SMA10 - SURFACE MOUNT SILICON ZENER DIODES

Product Overview

SunMate

Part number	Z3SMA10
Manufacturer	SunMate
File Size	175.00 KB
Description	SURFACE MOUNT SILICON ZENER DIODES
Datasheet	Z3SMA10 Datasheet
Note	This datasheet PDF includes multiple part numbers: Z3SMA10, Z3SMA3V9. Please refer to the document for exact specifications by model.

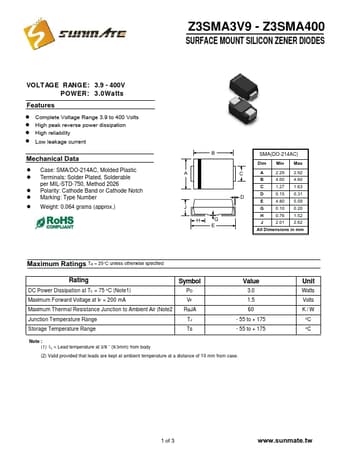

Additional preview pages of the Z3SMA10 datasheet.

! Complete Voltage Range 3.9 to 400 Volts ! High peak reverse power dissipation ! High reliability ! Low leakage current Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.064 grams (approx. ) B A J H G E SMA(DO-214AC) Dim Min Max C A 2.29 2.92 B 4.00 4.60 C 1.27 1.63 D D 0.15 0.31 E 4.80 5.59 G 0.10 0.20 H 0.76 1.52 J 2.01 2.6.
