DFF2N60 Datasheet, Mosfet, DnI

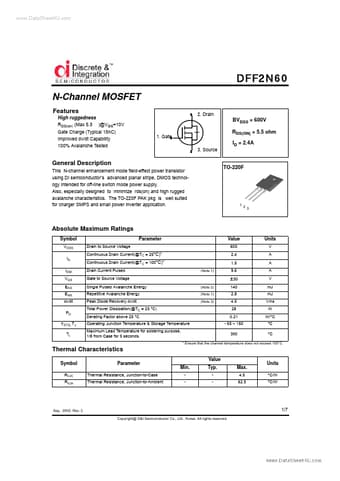

DFF2N60 Features

• Mosfet High ruggedness RDS(on) (Max 5.5 )@VGS=10V Gate Charge (Typical 15nC) Improved dv/dt Capability 100% Avalanche Tested 1. Gate { { { 2. Drain BVDSS = 600V RDS(ON) = 5.5 ohm ID = 2.4A 3

PDF File Details

Part number:

DFF2N60

Manufacturer:

DnI

File Size:

701.28kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This N-channel enhancement mode field-effect power transistor using DI semiconductor’s advanced planar stripe, DMOS technology intend
