DK8715AD Asymmetric Half-Bridge AC-DC Power Converter

The DK87xxAD is an AC-DC power converter based on asymmetric half-bridge topology, which integrates half bridge GaN devices. The DK87xxAD recycles leakage inductance energy to enable primary side ZVS and secondary side ZCS. Therefore, system overall efficiency is improved. Soft switches also can red.

DK8715AD Features

* HB GaN FETs integrated

* AHB control circuit and half-bridge driver integrated

* Up to 800KHz switching frequency

* Standby power consumption less than 50mW

* Self adaptive dead time

* Very few peripheral components

* Less voltage stress over secondary side FET

* Bu

DK8710AD-DongKeSemicondutor.pdf

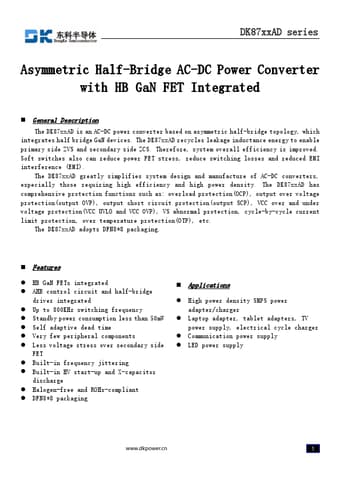

DK8715AD Datasheet Preview — This datasheet PDF includes multiple part numbers: DK8715AD, DK8710AD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DK8715AD, DK8710AD

Manufacturer:

DongKe Semicondutor

File Size:

2.24 MB

Description:

Asymmetric half-bridge ac-dc power converter.

Note:

This datasheet PDF includes multiple part numbers: DK8715AD, DK8710AD.
Please refer to the document for exact specifications by model.
