DRA808M

30dBm Wireless Voice Transceiver

DRA808M Features

* Frequency Range: 400~470MHz

* Tx/Rx frequency independent

* Channel space: 12.5/25KHz

* Configurable multi-channels

* Sensitivity: -122dBm

* Output power: +27/30dBm

* 38 CTCSS codes

* 6 volume levels

* 8 squelch levels

* UART interface

* Temperature: -2

DRA808M General Description

DRA808M is a type of compact wireless voice transceiver module. It integrates high speed microcontroller, high performance wireless transceiver IC, high power PA, audio process and squelching circuits. It provides standard UART interface which users can easily configure appropriate parameters for di.

DRA808M Datasheet (155.62 KB)

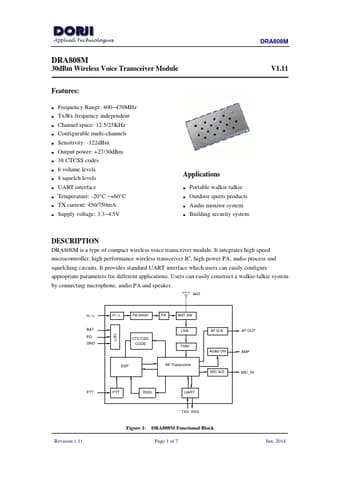

Preview of DRA808M PDF

Datasheet Details

Part number:

DRA808M

Manufacturer:

Dorji

File Size:

155.62 KB

Description:

30dbm wireless voice transceiver.
