ACR44U, ACR-44U, Fast Turn-off Asymmetric Thyristor

www.DataSheet.co.kr ACR44U ACR44U Fast Turn-off Asymmetric Thyristor Advance Information Replaces March 1998 version, DS4222-3.4 DS4222-4.0 January

Features

* s The ACR44U is a glass passivated asymmetric thyristor which has exceptionally fast turn-off capabilities combined with good turn-on characteristics.
VOLTAGE RATINGS Type Number Repetitive Peak Off-state Voltage VDRM V 1600 1400 1200 1000 800 Repetitive Peak Reverse Voltage VRRM V 2 2 2 2 2 Outlin

Applications

* s High Frequency Applications s Regulated Power Supplies s Capacitor Discharge s Ultrasonic Generators s Induction Heating
* dV/dt Available to 1000V/µs KEY PARAMETERS 1600V VDRM IT(AV) 44A ITSM 550A dVdt

ACR-44U-16LE.pdf

This datasheet PDF includes multiple part numbers: ACR44U, ACR-44U. Please refer to the document for exact specifications by model.

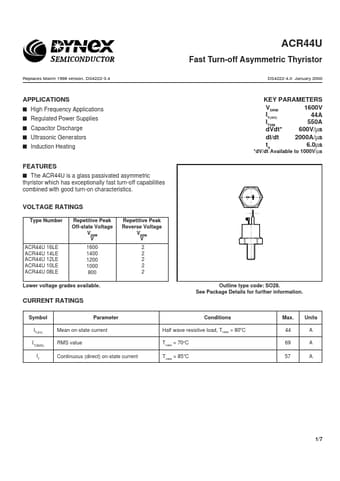

ACR44U Datasheet Preview Page 2 ACR44U Datasheet Preview Page 3

Datasheet Details

Part number:

ACR44U, ACR-44U

Manufacturer:

Dynex Semiconductor

File Size:

110.07 KB

Description:

Fast turn-off asymmetric thyristor.

Note:

This datasheet PDF includes multiple part numbers: ACR44U, ACR-44U.
Please refer to the document for exact specifications by model.
