ACR44U12LE Fast Turn-off Asymmetric Thyristor

ACR44U12LE Description

ACR44U ACR44U Fast Turn-off Asymmetric Thyristor Advance Information Replaces March 1998 version, DS4222-3.4 DS4222-4.0 January 2000 APPLICATIONS s .

ACR44U12LE Features

* s The ACR44U is a glass passivated asymmetric thyristor which has exceptionally fast turn-off capabilities combined with good turn-on characteristics. VOLTAGE RATINGS Type Number Repetitive Peak Off-state Voltage VDRM V 1600 1400 1200 1000 800 Repetitive Peak Reverse Voltage VRRM V 2 2 2 2 2 Outlin

ACR44U12LE Applications

* s High Frequency Applications s Regulated Power Supplies s Capacitor Discharge s Ultrasonic Generators s Induction Heating
* dV/dt Available to 1000V/µs KEY PARAMETERS 1600V VDRM IT(AV) 44A ITSM 550A dVdt

📥 Download Datasheet

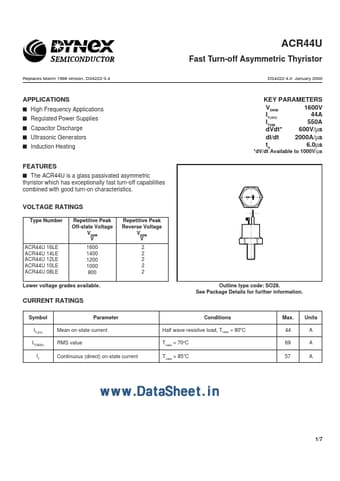

Preview of ACR44U12LE PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ACR44U12LE
Manufacturer
Dynex Semiconductor
File Size
66.88 KB
Datasheet
ACR44U12LE_DynexSemiconductor.pdf
Description
Fast Turn-off Asymmetric Thyristor
