DIM100PHM33-A000 Datasheet, Module, Dynex Semiconductor

DIM100PHM33-A000 Features

  • Module I I I I KEY PARAMETERS VCES VCE(sat)
  • IC IC(PK) (typ) (max) (max) 3300V 3.4V 100A 200A 10µs Short Circuit Withstand High Thermal Cycling Capability Non Punch Through Silicon

PDF File Details

Part number:

DIM100PHM33-A000

Manufacturer:

Dynex Semiconductor

File Size:

338.36kb

Download:

📄 Datasheet

Description:

Igbt power module.

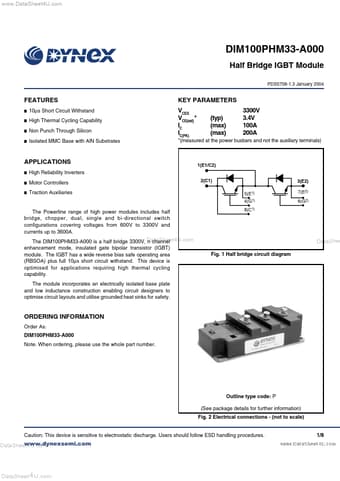

Datasheet Preview: DIM100PHM33-A000 📥 Download PDF (338.36kb)
Page 2 of DIM100PHM33-A000 Page 3 of DIM100PHM33-A000

DIM100PHM33-A000 Application

  • Applications I I I 1(E1/C2) 2(C1) 5(E1) 4(G1) 3(E2) 7(E2) 6(G2) High Reliability Inverters Motor Controllers Traction Auxiliaries The Powerline r
