DIM100PHM33-F000

Half-Bridge IGBT

DIM100PHM33-F000 Features

* 10µs Short Circuit Withstand

* High Thermal Cycling Capability

* Soft Punch Through Silicon

* Isolated AlSiC Base with AlN Substrates

* Lead Free Construction KEY PARAMETERS VCES VCE(sat)

* (typ) IC (max) IC(PK) (max) 3300V 2.8V 100A 200A

* M

DIM100PHM33-F000 Datasheet (308.61 KB)

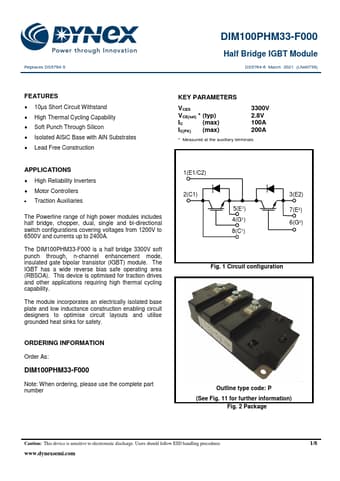

Preview of DIM100PHM33-F000 PDF

Datasheet Details

Part number:

DIM100PHM33-F000

Manufacturer:

Dynex Semiconductor

File Size:

308.61 KB

Description:

Half-bridge igbt.
