RD33FG - Rectifier Diode

Datasheet Summary

Features

  • s s s KEY.

📥 Download Datasheet

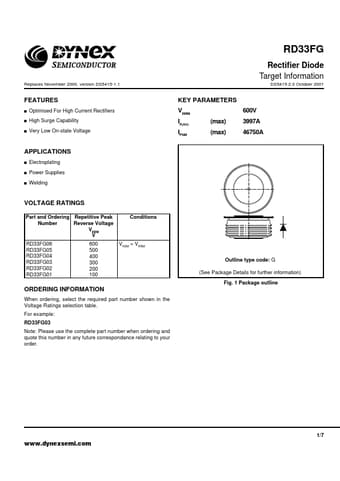

Datasheet preview – RD33FG

Datasheet Details

Part number RD33FG
Manufacturer Dynex Semiconductor
File Size 96.40 KB
Description Rectifier Diode
Datasheet download datasheet RD33FG Datasheet
Additional preview pages of the RD33FG datasheet.

📁 Similar Datasheet

  • RD33F - ZENER DIODES (EIC)
  • RD33F - ZENER DIODES (NEC)
  • RD33FM - SURFACE MOUNT SILICON ZENER DIODES (SunMate)
  • RD33FM - ZENER DIODES (Renesas)
  • RD330 - ThinkServer User Guide Manual (Lenovo)
  • RD33E - Zener diode (Excel Semiconductor)
  • RD33E - SILICON ZENER DIODES (EIC)
  • RD33E - Zener Diode (NEC)
  • RD33E - 500mW PLANAR TYPE SILICON ZENER DIODES (Renesas)
  • RD33EB - ZENER DIODES (SEMTECH)
Other Datasheets by Dynex Semiconductor

Full PDF Text Transcription

Click to expand full text
RD33FG RD33FG Rectifier Diode Target Information Replaces November 2000, version DS5415-1.1 DS5415-2.0 October 2001 FEATURES s s s KEY PARAMETERS VRRM IF(AV) IFSM (max) (max) 600V 3997A 46750A Optimised For High Current Rectifiers High Surge Capability Very Low On-state Voltage APPLICATIONS s s s Electroplating Power Supplies Welding VOLTAGE RATINGS Part and Ordering Repetitive Peak Number Reverse Voltage VRRM V RD33FG06 RD33FG05 RD33FG04 RD33FG03 RD33FG02 RD33FG01 600 500 400 300 200 100 Conditions VRSM = VRRM Outline type code: G (See Package Details for further information) Fig. 1 Package outline ORDERING INFORMATION When ordering, select the required part number shown in the Voltage Ratings selection table.
