SV1506FM, SV15xx Fast Recovery Diode

SV1506FM Description

Replaces March 1998 version, DS4209-2.2 SV15..F SV15..F Fast Recovery Diode DS4209-3.0 January 2000 APPLICATIONS s Induction Heating s A.C.Motor Dr.

SV1506FM Features

* s Thermal Fatigue Free Pressure Contact s High Surge Capability s Low Recovery Charge VOLTAGE RATINGS Type Number Repetitive Peak Reverse Voltage VRRM V Conditions SV15 16F M or K SV15 14F M or K SV15 12F M or K SV15 10F M or K SV15 08F M or K SV15 06F M or K 1600 1400 1200 1000 800 600 V = V

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SV1506FM, SV15xx. Please refer to the document for exact specifications by model.

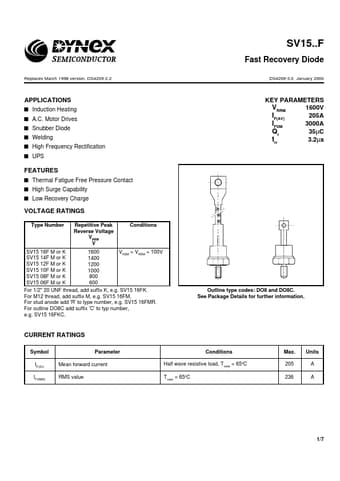

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SV1506FM, SV15xx
Manufacturer
Dynex Semiconductor
File Size
64.26 KB
Datasheet
SV15xx_DynexSemiconductor.pdf
Description
Fast Recovery Diode
Note
This datasheet PDF includes multiple part numbers: SV1506FM, SV15xx.
Please refer to the document for exact specifications by model.
