SV1580V - ULTRA LOW VF SCHOTTKY BARRIER RECTIFIER

Pan Jit International

📥 Download Datasheet

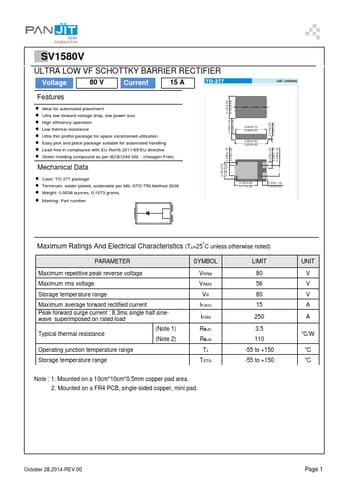

SV1580V Datasheet Preview — Preview of SV1580V PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SV1580V
Manufacturer	Pan Jit International
File Size	238.41 KB
Description	ULTRA LOW VF SCHOTTKY BARRIER RECTIFIER
Datasheet	SV1580V-PanJitInternational.pdf

SV1580V Product details

Features

Ideal for automated placement.
Ultra low forward voltage drop, low power loss.
High efficiency operation.
Low thermal resistance.
Ultra thin profile package for space constrained utilization.
Easy pick and place package suitable for automated handling.
Lead free in compliance with EU RoHS 2011/65/EU directive.
Green molding compound as per IEC61249 Std. . (Halogen Free) Mechanical Data.
Case: TO-277 package.
Terminals: solder plated, solderable.
