MAS110S - Fast Turn-off Asymmetric Thyristor/Diode Module

Datasheet Summary

Description

The MAS 110S is a fast thyristor/diode module in an electrically isolated package.

The semiconductors are are pressure contact mounted giving high resistance to thermal fatigue, and having excellent heat dissipation qualities.

Isolation medium is non-toxic alumina.

📥 Download Datasheet

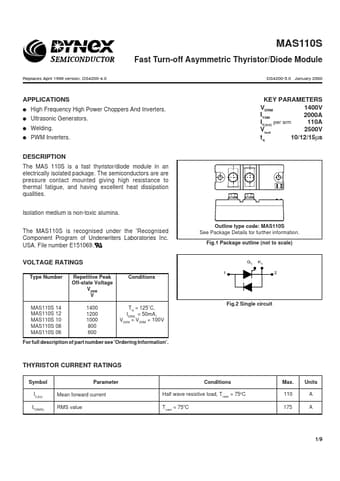

Datasheet preview – MAS110S

Datasheet Details

Part number MAS110S
Manufacturer Dynex
File Size 67.06 KB
Description Fast Turn-off Asymmetric Thyristor/Diode Module
Datasheet download datasheet MAS110S Datasheet
Additional preview pages of the MAS110S datasheet.

📁 Similar Datasheet

  • MAS1175 - IC FOR 10.00 - 20.00 MHz VCTCXO (Micro Analog systems)
  • MAS1178 - IC FOR 10.00 - 20.00 MHz VCXO (Micro Analog systems)
  • MAS1008 - MAS1008 (Tesla)
  • MAS1016 - am Receiver (Micro Analog Systems)
  • MAS1016B - am Receiver (Micro Analog Systems)
  • MAS1017 - am Receiver (Micro Analog Systems)
  • MAS1206 - Equipment Designed to Conform EMI Regulations Such As VCCI /CISPR /FCC /VDE /etc (DENSEI-LAMBDA)
  • MAS1206-33 - Equipment Designed to Conform EMI Regulations Such As VCCI /CISPR /FCC /VDE /etc (DENSEI-LAMBDA)
  • MAS1210-33 - Equipment Designed to Conform EMI Regulations Such As VCCI /CISPR /FCC /VDE /etc (DENSEI-LAMBDA)
  • MAS1215-33 - Equipment Designed to Conform EMI Regulations Such As VCCI /CISPR /FCC /VDE /etc (DENSEI-LAMBDA)
Other Datasheets by Dynex
  • MAS281 - MIL-STD-1750A Microprocessor

Full PDF Text Transcription

Click to expand full text
MAS110S MAS110S Fast Turn-off Asymmetric Thyristor/Diode Module Replaces April 1999 version, DS4200-4.0 DS4200-5.0 January 2000 APPLICATIONS q q q q High Frequency High Power Choppers And Inverters. Ultrasonic Generators. Welding. PWM Inverters. KEY PARAMETERS VDRM 1400V ITSM 2000A IT(AV) per arm 110A Visol 2500V tq 10/12/15µs DESCRIPTION The MAS 110S is a fast thyristor/diode module in an electrically isolated package. The semiconductors are are pressure contact mounted giving high resistance to thermal fatigue, and having excellent heat dissipation qualities. Isolation medium is non-toxic alumina. The MAS110S is recognised under the 'Recognised Component Program of Underwriters Laboratories Inc. USA. File number E151069.
