20SQ050

(20SQ030 - 20SQ100) SCHOTTKY BARRIER RECTIFIERS

Download Datasheet (178.23 KB)

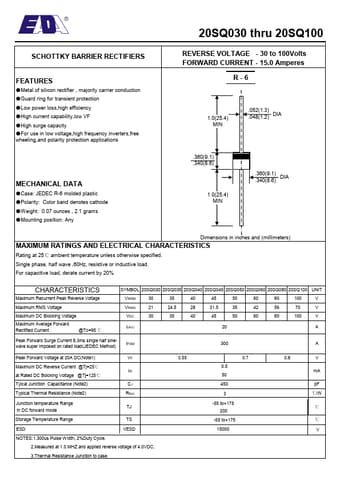

20SQ050 Datasheet Preview — Preview of 20SQ050 Datasheet

Datasheet Details

Part number:

20SQ050

Manufacturer:

EADA

File Size:

178.23 KB

Description:

(20sq030 - 20sq100) schottky barrier rectifiers.
20SQ030 thru 20SQ100 SCHOTTKY BARRIER RECTIFIERS REVERSE VOLTAGE - 30 to 100Volts FORWARD CURRENT - .
15.0 Amperes R-6 FEATURES *Metal of silicon rectifier , majority carrier conduction *Guard ring for.

✔ 20SQ050 Features

Metal of silicon rectifier , majority carrier conduction
Guard ring for transient protection
Low power loss,high efficiency
High current capability,low VF
High surge

✔ 20SQ050 Application

.360(9.1) .340(8.6) 1.0(25.4) MIN .052(1.3) DIA .048(1.2) 2100 .360(9.1) DIA .340(8.6) MECHANICAL DATA
C
