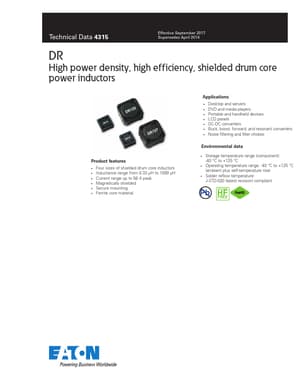

datasheet Preview Page 1 from Datasheet4u.com

DR127, DR125 shielded drum core power inductors

Technical Data 4315 Effective September 2017 Supersedes April 2014 DR High power density, high efficiency, shielded drum core power inductors Produ.

DR125-EATON.pdf

DR127 Datasheet Preview — This datasheet PDF includes multiple part numbers: DR127, DR125. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DR127, DR125

Manufacturer:

EATON

File Size:

678.57 KB

Description:

shielded drum core power inductors

Note:

This datasheet PDF includes multiple part numbers: DR127, DR125.
Please refer to the document for exact specifications by model.

Features

* Four sizes of shielded drum core inductors
* Inductance range from 0.33 µH to 1000 µH
* Current range up to 56 A peak
* Magnetically shielded
* Secure mounting

Applications

* Desktop and servers
* DVD and media players
* Portable and handheld devices
* LCD panels
* DC-DC converters
* Buck, boost, forward, and resonant converters
* Noise filtering and filter chokes Environmental data
* Storage temperature
