DR125 - shielded drum core power inductors

EATON

DR125 Description

Technical Data 4315 Effective September 2017 Supersedes April 2014 DR High power density, high efficiency, shielded drum core power inductors Produ.

DR125 Features

* Four sizes of shielded drum core inductors
* Inductance range from 0.33 µH to 1000 µH
* Current range up to 56 A peak
* Magnetically shielded
* Secure mounting

DR125 Applications

* Desktop and servers
* DVD and media players
* Portable and handheld devices
* LCD panels
* DC-DC converters
* Buck, boost, forward, and resonant converters
* Noise filtering and filter chokes Environmental data
* Storage temperature

📥 Download Datasheet

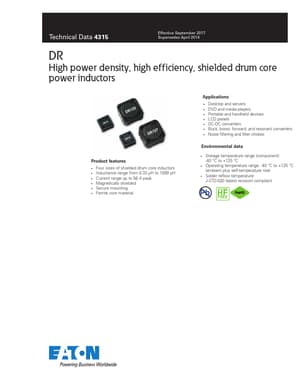

DR125 Datasheet Preview — Preview of DR125 PDF

Datasheet Details

Part number: DR125
Manufacturer: EATON
File Size: 678.57 KB
Datasheet: DR125-EATON.pdf
Description: shielded drum core power inductors
