DR125-124-R, DR125-R47-R, Shielded Inductors

Technical Data 4315 Effective September 2017 Supersedes April 2014 DR High power density, high efficiency, shielded drum core power inductors Produ.

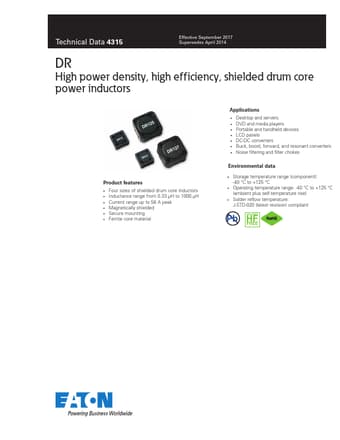

datasheet Preview Page 1 from Datasheet4u.com

DR125-R47-R_CooperBussmann.pdf

DR125-124-R Datasheet Preview — This datasheet PDF includes multiple part numbers: DR125-124-R, DR125-R47-R. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DR125-124-R, DR125-R47-R

Manufacturer:

Cooper Bussmann

File Size:

838.25 KB

Description:

Shielded Inductors

Note:

This datasheet PDF includes multiple part numbers: DR125-124-R, DR125-R47-R.
Please refer to the document for exact specifications by model.

Features

* Four sizes of shielded drum core inductors
* Inductance range from 0.33 µH to 1000 µH
* Current range up to 56 A peak
* Magnetically shielded
* Secure mounting

Applications

* Desktop and servers
* DVD and media players
* Portable and handheld devices
* LCD panels
* DC-DC converters
* Buck, boost, forward, and resonant converters
* Noise filtering and filter chokes Environmental data
* Storage temperature
