DR120 - Dielectric Coaxial Resonators

DR120 Description

* Product Introduction Token coaxial resonators (DR) are the cornerstone of RF microwave communications..

DR120 Features

* :
* High quality factor.
* High dielectric constant.
* Low temperature coefficient.

DR120 Applications

* :
* CDMA/PCS/WLL/IMT2000.
* Filters, Duplexer, Oscillators (DRO/VCO).
* Wireless headphone, wireless security system.
* 900MHz, 1.8GHz, 2.4GHz, 5.8GHz wireless phone. (DR) is a kind of microwave components, also known as ceramic resonator, Token electronics manufacturing dielectric

📥 Download Datasheet

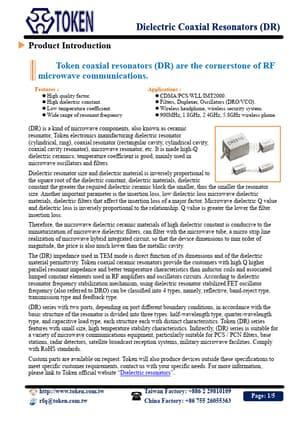

Preview of DR120 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DR120
Manufacturer
Token
File Size
299.70 KB
Datasheet
DR120-Token.pdf
Description
Dielectric Coaxial Resonators
