RL1011 - Unshielded radial leaded drum core inductors

EATON

RL1011 Description

Technical Data 10278 Effective October 2017 Supersedes June 2014 RL1011 Unshielded radial leaded drum core inductors Product .

RL1011 Features

* Unshielded, leaded drum core
* Protective sleeving over winding
* Inductance range from 4.7 μH to 2200 μH
* Current range from 0.263 A to 7.11 A
* 9.5 mm OD x 10.5 mm through-hole package

RL1011 Applications

* LED Drivers and lighting
* Utility meters
* Appliance electronics
* Motor drives
* Power supplies
* General purpose filtering Environmental data
* Storage temperature range (Component): -40 °C to +125 °C
* Operating temperature

📥 Download Datasheet

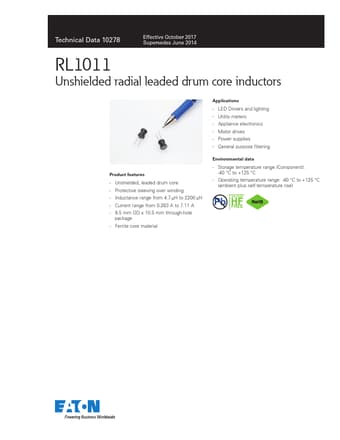

RL1011 Datasheet Preview — Preview of RL1011 PDF

Datasheet Details

Part number: RL1011
Manufacturer: EATON
File Size: 565.48 KB
Datasheet: RL1011-EATON.pdf
Description: Unshielded radial leaded drum core inductors
