RL101FG - GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER

Product Overview

GOOD-ARK Electronics

Part number	RL101FG
Manufacturer	GOOD-ARK Electronics
File Size	157.28 KB
Description	GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER
Datasheet	RL101FG Datasheet
Note	This datasheet PDF includes multiple part numbers: RL101FG, RL101FG_GOOD. Please refer to the document for exact specifications by model.

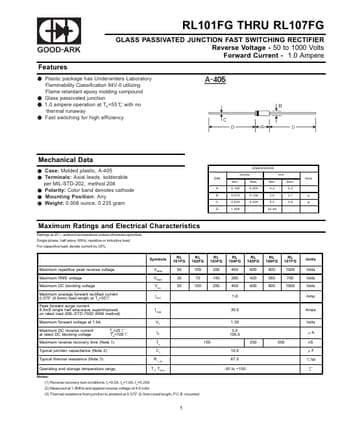

Additional preview pages of the RL101FG datasheet.

Plastic package has Underwriters Laboratory Flammability Classification 94V-0 utilizing Flame retardant epoxy molding compound Glass passivated junction 1.0 ampere operation at TA=55 with no thermal runaway Fast switching for high efficiency Mechanical Data Case: Molded plastic, A-405 Terminals: Axial leads, solderable per MIL-STD-202, method 208 Polarity: Color band denotes cathode Mounting Position: Any Weight: 0.008 ounce, 0.235 gram.
