RL102F - FAST SWITCHING PLASITC RECTIFIER

Product Overview

GOOD-ARK Electronics

Part number	RL102F
Manufacturer	GOOD-ARK Electronics
File Size	207.83 KB
Description	FAST SWITCHING PLASITC RECTIFIER
Datasheet	RL102F Datasheet
Note	This datasheet PDF includes multiple part numbers: RL102F, RL102F_GOOD. Please refer to the document for exact specifications by model.

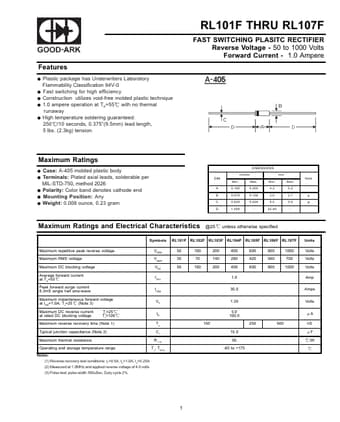

Additional preview pages of the RL102F datasheet.

Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Fast switching for high efficiency Construction utilizes void-free molded plastic technique 1.0 ampere operation at TA=55 with no thermal runaway High temperature soldering guaranteed: 250 /10 seconds, 0.375(9.5mm) lead length, 5 lbs. (2.3kg) tension Maximum Ratings Case: A-405 molded plastic body Terminals: Plated axial leads, solderable per MIL-STD-750, method 2026 Polarity: Color band denotes cathode end Mounting.
