HSA15S5

Mil Grade DC DC converters

HSA15S5 Features

* of Mil Grade DC DC convertersHSA28 Series

* 16 to 40 VDC input, typical 28V

* Model HSA15S5 10 to 20V DC output, typical 15V

* 5W output power

* -55℃ to +125℃ operation

* Fully isolated

* More than100MΩ(500V DC) isolation Size : (non-flanged) 27.31x27.31x 6.86 mm3 (flang

HSA15S5 General Description

of Mil Grade DC DC converters- HSA28 Series The HSA28 Series of DC/DC converters offer up to 5 SINGLE HSA28S5(F) HSA28S12(F) HSA28S15(F) DUAL HSA28D5(F) HSA28D12(F) HSA28D15(F) watts of output power with high reliability. The HSA28 HSA28S5R2(F) series’ small size, light weight, and hermetically .

HSA15S5 Datasheet (481.38 KB)

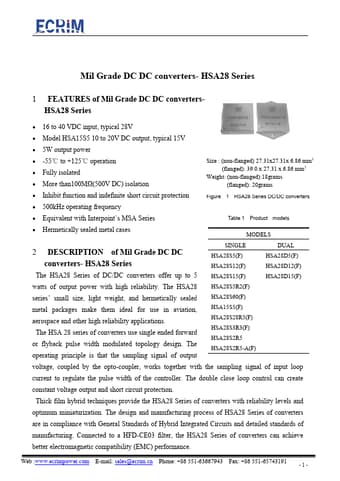

Preview of HSA15S5 PDF

Datasheet Details

Part number:

HSA15S5

Manufacturer:

ECRIM

File Size:

481.38 KB

Description:

Mil grade dc dc converters.
