XEL-014PAL Datasheet - EHWZ

XEL-014PAL 13.3W Single Output Dimmable LED Driver

13.3W Single Output Dimmable LED Driver XEL-014PAL Series Product Highlights: Designed for LED lighting and signage applications Universal AC input (108~132VAC) Built-in active PFC Class2 power supply Plastic case (5VA) cooled by air convection Ideal for Down Light and Recessed Light application. Suitable for placement in standard electrical junction box Protections: Short circuit / Over voltage / Over Current / Over temperature Triac and transistor dimmer support Dimming at 120Vac <.

XEL-014PAL-EHWZ.pdf

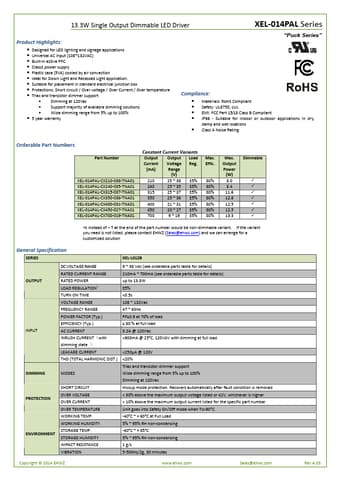

Preview of XEL-014PAL PDF
XEL-014PAL Datasheet Preview Page 2

Datasheet Details

Part number:

XEL-014PAL

Manufacturer:

EHWZ

File Size:

166.10 KB

Description:

13.3w single output dimmable led driver.
