BR3500W - SILICON BRIDGE RECTIFIERS

Datasheet Summary

Features

  • :.
  • High current capability High surge current capability High reliability Low reverse current Low forward voltage drop High case dielectric strength.

📥 Download Datasheet

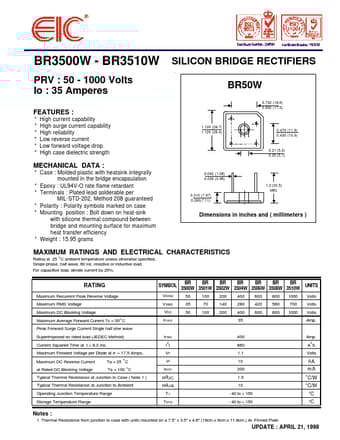

Datasheet preview – BR3500W

Datasheet Details

Part number BR3500W
Manufacturer EIC discrete Semiconductors
File Size 19.00 KB
Description SILICON BRIDGE RECTIFIERS
Datasheet download datasheet BR3500W Datasheet
Additional preview pages of the BR3500W datasheet.

📁 Similar Datasheet

  • BR3500 - Bridge Rectifier (Formosa MS)
  • BR35005 - Bridge Rectifiers (Yangzhou Yangjie)
  • BR35005 - SILICON BRIDGE RECTIFIERS (GALAXY ELECTRICAL)
  • BR35005 - Silicon Bridge Rectifiers (SeCoS)
  • BR35005 - Silicon Bridge Rectifiers (LGE)
  • BR35005-G - Silicon Bridge Rectifiers (Comchip)
  • BR35005W - Bridge Rectifiers (Yangzhou Yangjie)
  • BR35005W - Silicon Bridge Rectifiers (HY ELECTRONIC)
  • BR35005W - SILICON BRIDGE RECTIFIERS (GALAXY ELECTRICAL)
  • BR35005W - Silicon Bridge Rectifiers (LGE)
Other Datasheets by EIC discrete Semiconductors
  • BR3500 - SILICON BRIDGE RECTIFIERS
  • BR3501 - SILICON BRIDGE RECTIFIERS
  • BR3501W - SILICON BRIDGE RECTIFIERS
  • BR3502 - SILICON BRIDGE RECTIFIERS
  • BR3502W - SILICON BRIDGE RECTIFIERS
  • BR3504 - SILICON BRIDGE RECTIFIERS
  • BR3504W - SILICON BRIDGE RECTIFIERS
  • BR3506 - SILICON BRIDGE RECTIFIERS

Full PDF Text Transcription

Click to expand full text
BR3500W - BR3510W PRV : 50 - 1000 Volts Io : 35 Amperes FEATURES : * * * * * * High current capability High surge current capability High reliability Low reverse current Low forward voltage drop High case dielectric strength SILICON BRIDGE RECTIFIERS BR50W 0.732 (18.6) 0.692 (17.5) 1.130 (28.7) 1.120 (28.4) 0.470 (11.9) 0.430 (10.9) 0.21 (5.3) 0.20 (5.1) MECHANICAL DATA : * Case : Molded plastic with heatsink integrally mounted in the bridge encapsulation * Epoxy : UL94V-O rate flame retardant * Terminals : Plated lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Polarity symbols marked on case * Mounting position : Bolt down on heat-sink with silicone thermal compound between bridge and mounting surface for maximum heat transfer efficiency * Weight : 15.
