SA160A TRANSIENT VOLTAGE SUPPRESSOR

SA160A Description

SA5.0 - SA170A VBR : 6.8 - 200 Volts PPK : 500 Watts .

SA160A Features

* :
* 500W surge capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time : typically less then 1.0 ps from 0 volt to VBR(min. )
* Typical IR less then 1µA above 10V TRANSIENT VOLTAGE SUPPRESSOR DO - 41 0.107 (2.74) 0.080 (2.03) 1.00 (25.4) MIN

SA160A Applications

* For bi-directional use C or CA Suffix Electrical characteristics apply in both directions MAXIMUM RATINGS Rating at 25 °C ambient temperature unless otherwise specified. Rating Peak Power Dissipation at Ta = 25 °C, Tp=1ms (Note1) Steady State Power Dissipation at TL = 75 °C Lead Lengths 0.375", (9

📥 Download Datasheet

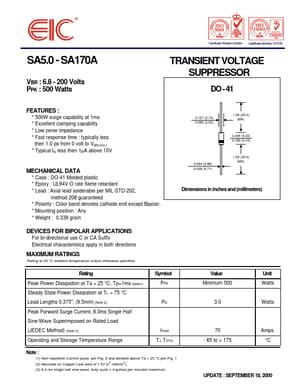

Preview of SA160A PDF
datasheet Preview Page 2 datasheet Preview Page 3
