1A5 - GLASS PASSIVATED JUNCTION SILICON RECTIFIER

EIC

1A5 Description

www.eicsemi.com 1A1 ~ 1A7 PRV : 50 - 1000 Volts Io : 1.0 Ampere GLASS PASSIVATED JUNCTION SILICON RECTIFIER R-1 .

1A5 Features

* :
* Glass passivated junction chip
* High current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free 0.099 (2.51) 0.095 (2.42) 1.00 (25.4) MIN. 0.138 (3.5) 0.114 (2.9) MECHANICAL DATA :
* Case : Molded plastic
* Epoxy :

📥 Download Datasheet

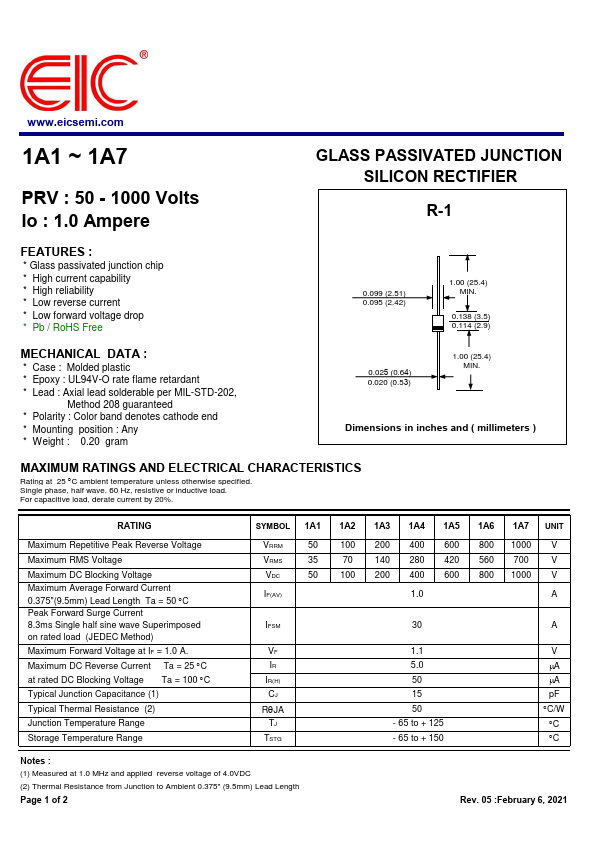

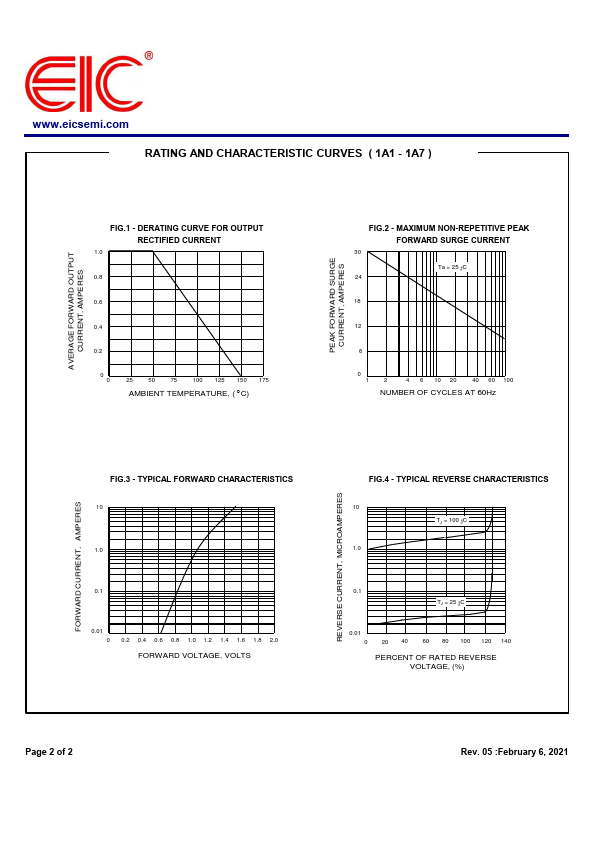

1A5 Datasheet Preview — Preview of 1A5 PDF

Datasheet Details

Part number: 1A5
Manufacturer: EIC
File Size: 133.19 KB
Datasheet: 1A5-EIC.pdf
Description: GLASS PASSIVATED JUNCTION SILICON RECTIFIER
