1N4970, 1N4954 SILICON ZENER DIODE

1N4970 Description

TH97/10561QM TW00/17276EM IATF 0060636 SGS TH07/1033 1N4954 ~ 1N4989 SILICON ZENER DIODE VZ : 6.8 - 200 Volts PD : 5 Watts DO-15 .

1N4970 Features

* :
* Glass passivated junction chip
* High peak reverse power dissipation
* High reliability
* Low leakage current
* Pb Free/RoHS Compliant 0.140 (3.6) 0.104 (2.6) 1.00 (25.4) MIN. 0.300 (7.6) 0.230 (5.8) MECHANICAL DATA :
* Case : DO-15 Molded plastic
* Epoxy : UL94V-0

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N4970, 1N4954. Please refer to the document for exact specifications by model.

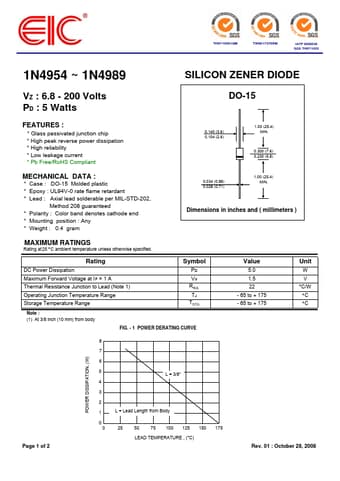

datasheet Preview Page 2

Datasheet Details

Part number
1N4970, 1N4954
Manufacturer
EIC
File Size
110.51 KB
Datasheet
1N4954-EIC.pdf
Description
SILICON ZENER DIODE
Note
This datasheet PDF includes multiple part numbers: 1N4970, 1N4954.
Please refer to the document for exact specifications by model.
