1N5348C, 1N5338C SILICON ZENER DIODES

1N5348C Description

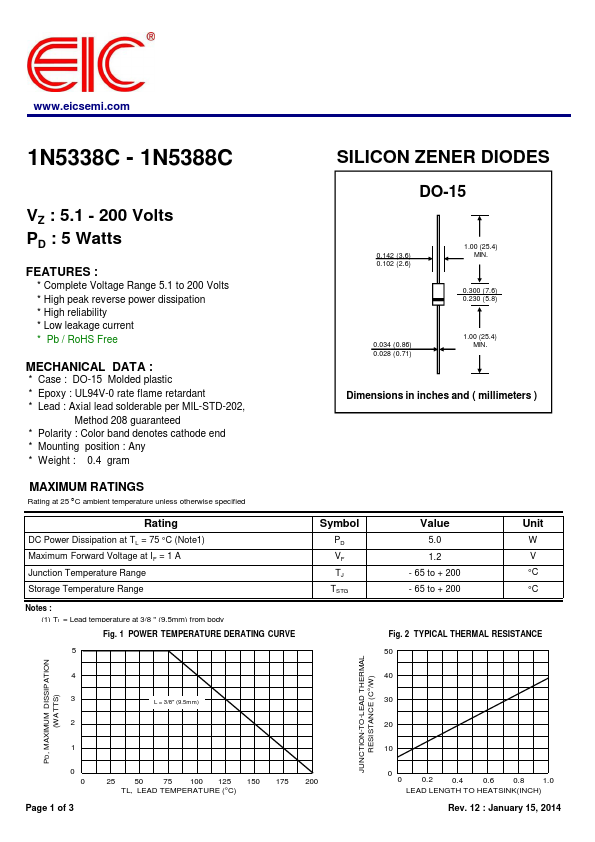

www.eicsemi.com 1N5338C - 1N5388C SILICON ZENER DIODES VZ : 5.1 - 200 Volts PD : 5 Watts .

1N5348C Features

* :
* Complete Voltage Range 5.1 to 200 Volts
* High peak reverse power dissipation
* High reliability
* Low leakage current
* Pb / RoHS Free MECHANICAL DATA :
* Case : DO-15 Molded plastic
* Epoxy : UL94V-0 rate flame retardant
* Lead : Axial lead solderable per MIL-ST

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N5348C, 1N5338C. Please refer to the document for exact specifications by model.

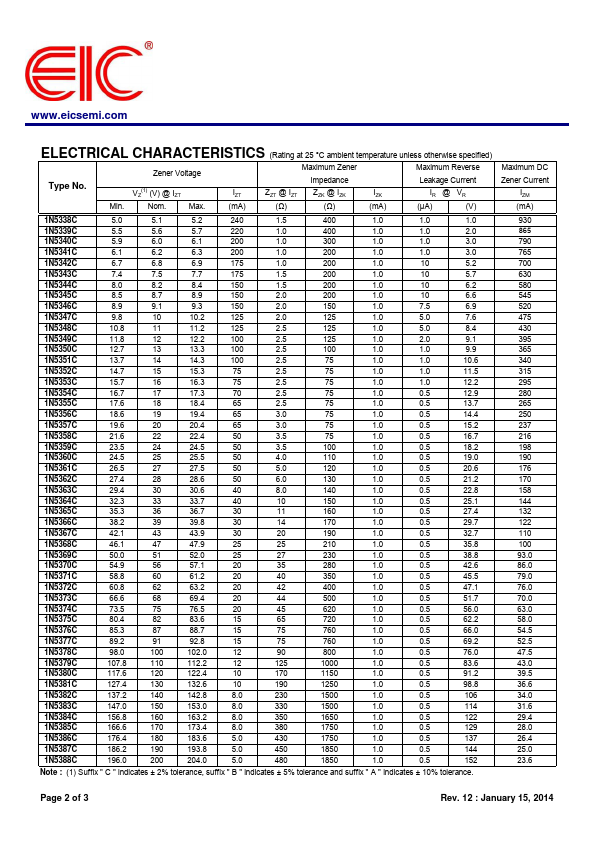

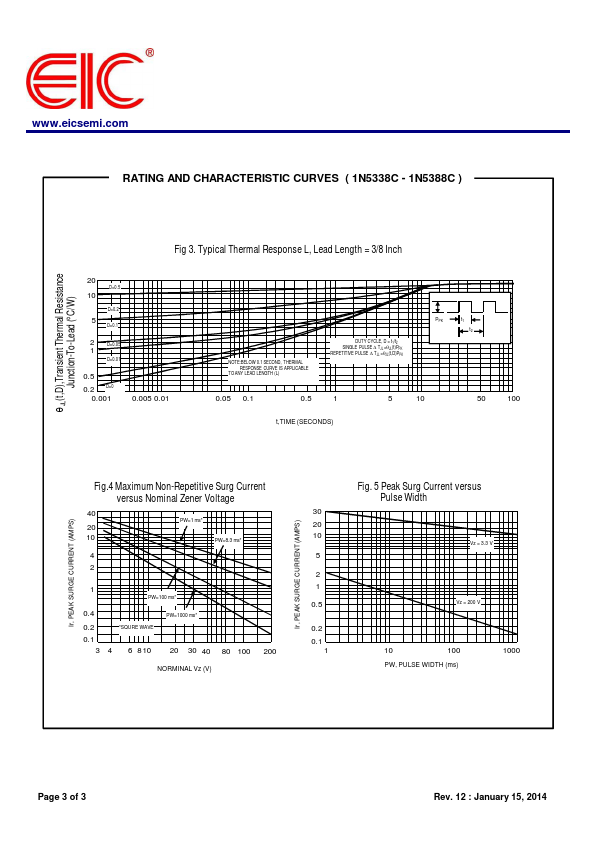

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N5348C, 1N5338C
Manufacturer
EIC
File Size
80.44 KB
Datasheet
1N5338C-EIC.pdf
Description
SILICON ZENER DIODES
Note
This datasheet PDF includes multiple part numbers: 1N5348C, 1N5338C.
Please refer to the document for exact specifications by model.
