1N5360C - SILICON ZENER DIODES

This page provides the datasheet information for the 1N5360C, a member of the 1N5338C SILICON ZENER DIODES family.

Datasheet Summary

Features

  • :.
  • Complete Voltage Range 5.1 to 200 Volts.
  • High peak reverse power dissipation.
  • High reliability.
  • Low leakage current.
  • Pb / RoHS Free.

📥 Download Datasheet

Datasheet preview – 1N5360C

Datasheet Details

Part number 1N5360C
Manufacturer EIC
File Size 80.44 KB
Description SILICON ZENER DIODES
Datasheet download datasheet 1N5360C Datasheet
Additional preview pages of the 1N5360C datasheet.

📁 Similar Datasheet

  • 1N5360 - 5W SILICON PLANAR ZENER DIODES (JINAN JINGHENG)
  • 1N5360 - 5.OWATT SURMETIC 40 SILICON ZENER DIODES (Motorola)
  • 1N5360B - Silicon Zener Diode (Motorola)
  • 1N5360B - ZENER DIODE (GME)
  • 1N5360B - 5.0W ZENER DIODE (WON-TOP)
  • 1N5360B - Zener Diode (NTE)
  • 1N5360B - 5W ZENER DIODE (Diodes Incorporated)
  • 1N5360B - Silicon 5 Watt Zener Diodes (Microsemi)
  • 1N5360B - Zener Diode (Eris)
  • 1N5360B - ZENER DIODE (RFE)
Other Datasheets by EIC

Full PDF Text Transcription

Click to expand full text

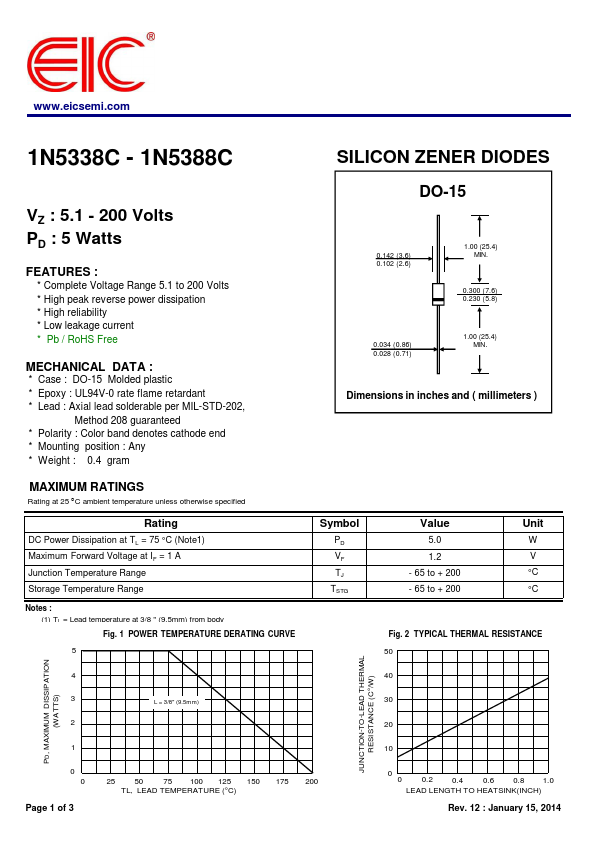

www.eicsemi.com 1N5338C - 1N5388C SILICON ZENER DIODES VZ : 5.1 - 200 Volts PD : 5 Watts FEATURES : * Complete Voltage Range 5.1 to 200 Volts * High peak reverse power dissipation * High reliability * Low leakage current * Pb / RoHS Free MECHANICAL DATA : * Case : DO-15 Molded plastic * Epoxy : UL94V-0 rate flame retardant * Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.4 gram DO-15 0.142 (3.6) 0.102 (2.6) 0.034 (0.86) 0.028 (0.71) 1.00 (25.4) MIN. 0.300 (7.6) 0.230 (5.8) 1.00 (25.4) MIN.
