1N5417 Features
* :
* Glass Passivated Junction Chip
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Fast recovery time
* Pb / RoHS Free D2A 0.161 (4.1) 0.154 (3.9) 0.040 (1.02) 0.0385 (0.98) 1.00 (25.4) MIN. 0.284 (7.2) 0.268 (6.8)
Datasheet Details

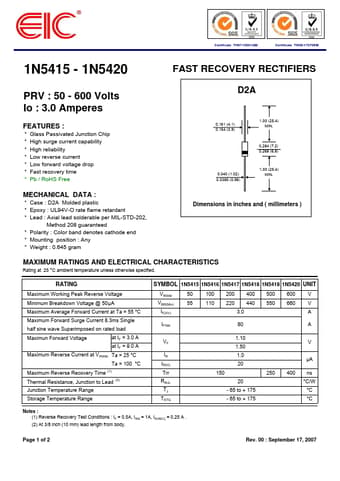

1N5417, 1N5415
EIC
78.34 KB
Fast recovery rectifiers.
This datasheet PDF includes multiple part numbers: 1N5417, 1N5415.
Please refer to the document for exact specifications by model.
