* High case dielectric strength
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Ideal for printed circuit board
* Pb / RoHS Free MECHANICAL DATA :
* Case : Molded plastic
* Epoxy : UL94V-0 rate flame retardan
2KBP005
EIC
89.46 KB
Silicon bridge rectifiers.
www.eicsemi.com
TH97/2478
TH09/2479
IATF 0113686 SGS TH07/1033

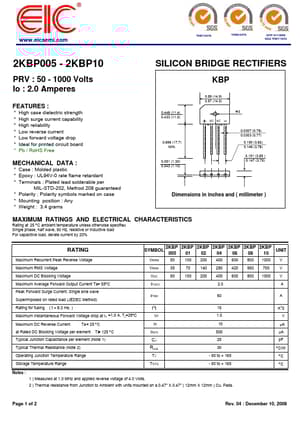

2KBP005 - 2KBP10
SILICON BRIDGE RECTIFIERS
PRV : 50 - 1000 Volts
Io : 2.0 Amperes.
