BR1000 - SILICON BRIDGE RECTIFIERS

BR1000 Description

www.eicsemi.com BR1000 - BR1010 SILICON BRIDGE RECTIFIERS PRV : 50 - 1000 Volts Io : 10 Amperes .

BR1000 Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Rated isolation-voltage 2000 VAC
* Ideal for printed circuit board
* Pb / RoHS Free MECHANICAL DATA :
* Case : Reliable low cost const

📥 Download Datasheet

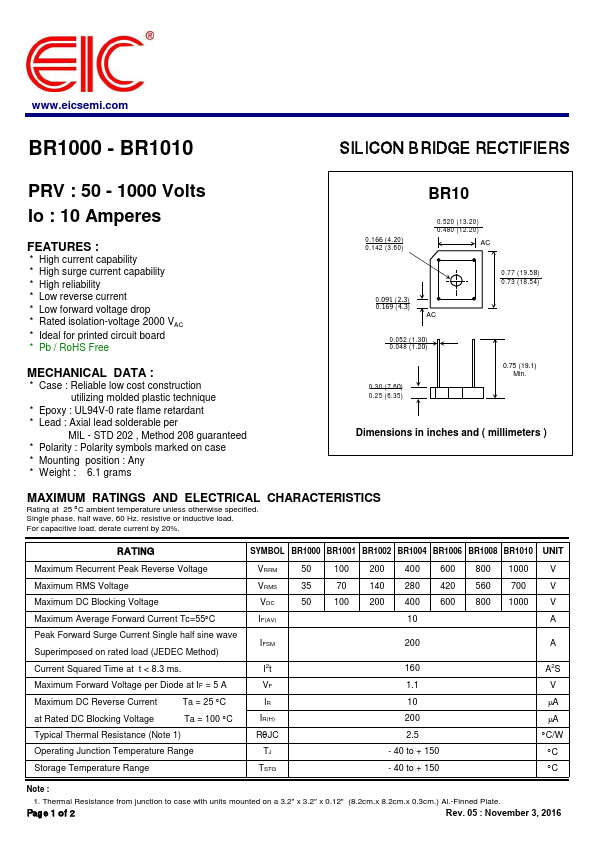

Preview of BR1000 PDF

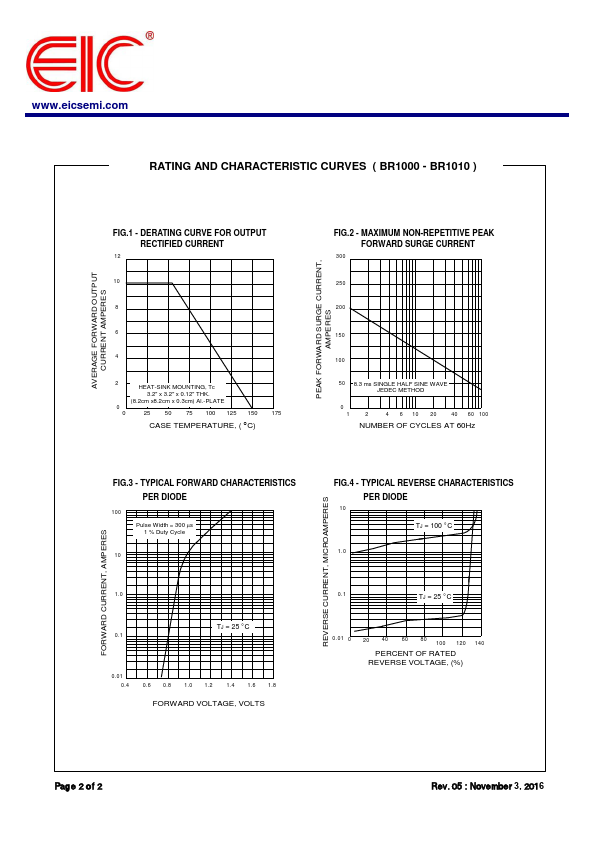

datasheet Preview Page 2

Datasheet Details

Part number
BR1000
Manufacturer
EIC
File Size
132.95 KB
Datasheet
BR1000-EIC.pdf
Description
SILICON BRIDGE RECTIFIERS
