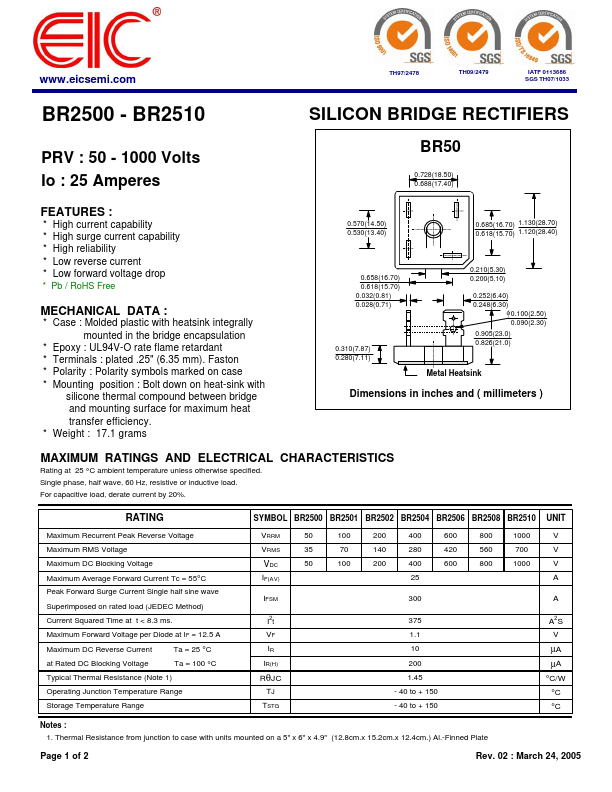

BR2501, BR2500 SILICON BRIDGE RECTIFIERS

BR2501 Description

www.eicsemi.com TH97/2478 TH09/2479 IATF 0113686 SGS TH07/1033 BR2500 - BR2510 SILICON BRIDGE RECTIFIERS PRV : 50 - 1000 Volts Io : 25 Amperes .

BR2501 Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : Molded plastic with heatsink integrally mounted in the bridge encapsulation
* Epoxy : UL94V-O ra

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BR2501, BR2500. Please refer to the document for exact specifications by model.

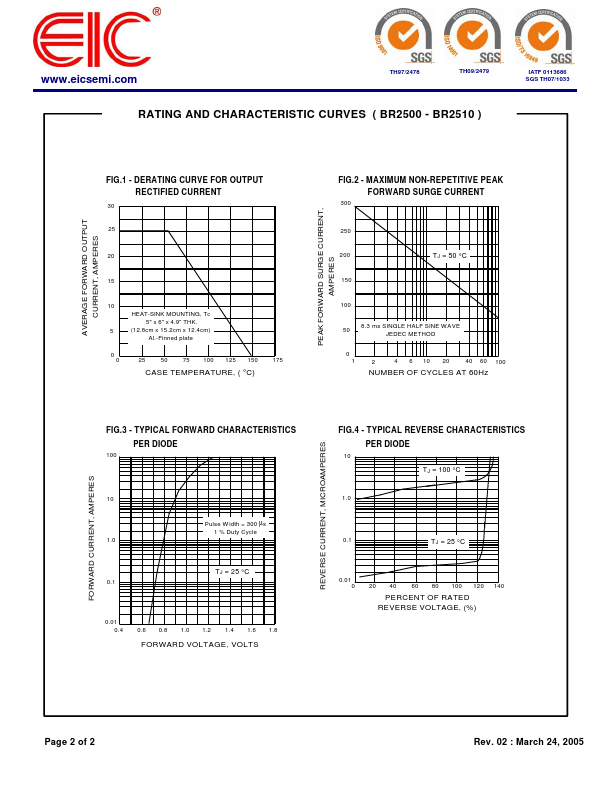

datasheet Preview Page 2

Datasheet Details

Part number
BR2501, BR2500
Manufacturer
EIC
File Size
45.21 KB
Datasheet
BR2500-EIC.pdf
Description
SILICON BRIDGE RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: BR2501, BR2500.
Please refer to the document for exact specifications by model.
