BR2504 - SILICON BRIDGE RECTIFIERS

Product Overview

EIC

📥 Download Datasheet

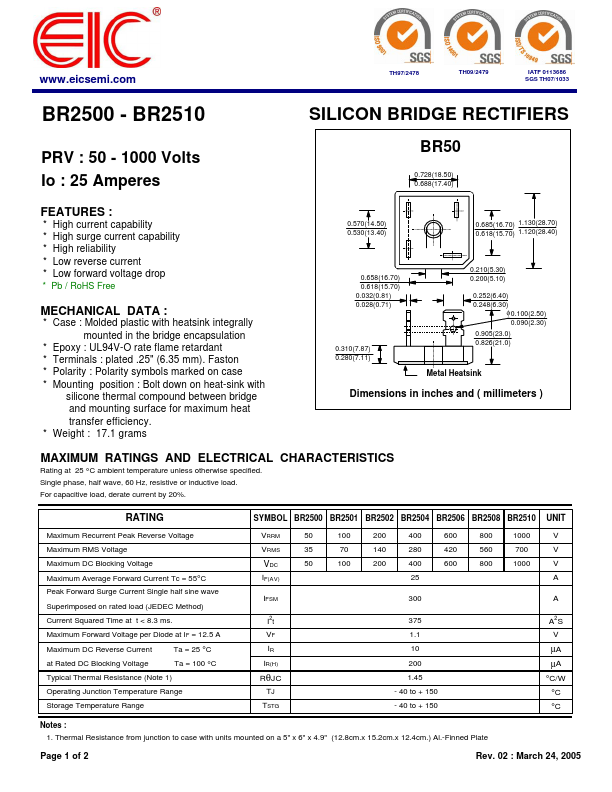

BR2504 SILICON BRIDGE RECTIFIERS by EIC - Datasheet Preview — Datasheet preview – BR2504

Datasheet Details

Part number	BR2504
Manufacturer	EIC
File Size	45.21 KB
Description	SILICON BRIDGE RECTIFIERS
Datasheet	BR2504 Datasheet
Note	This datasheet PDF includes multiple part numbers: BR2504, BR2500. Please refer to the document for exact specifications by model.

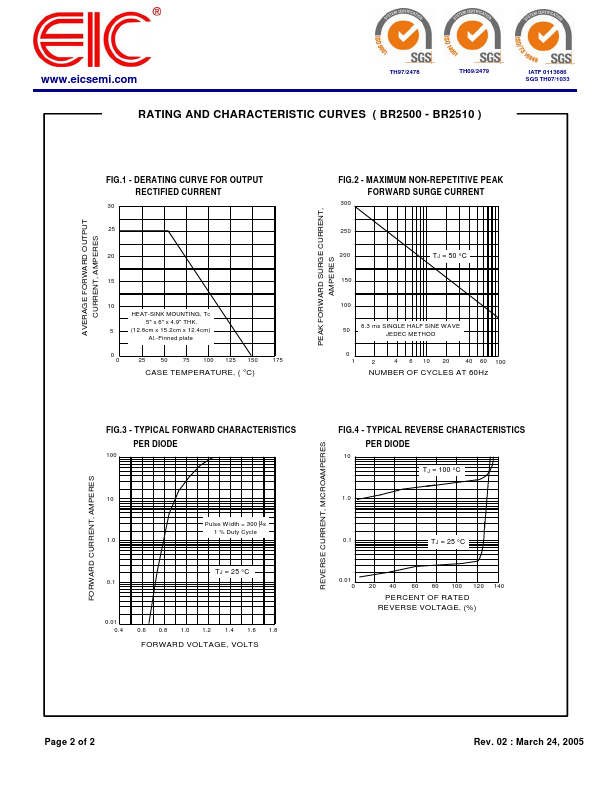

Additional preview pages of the BR2504 datasheet.

Product details

Features

:.
High current capability.
High surge current capability.
High reliability.
Low reverse current.
Low forward voltage drop.
Pb / RoHS Free.
