DF1502M

SURFACE MOUNT BRIDGE RECTIFIERS

DF1502M Features

* :

* High current capability

* High surge current capability

* High reliability

* Low reverse current

* Low forward voltage drop

* Ideal for printed circuit board

* Pb / RoHS Free MECHANICAL DATA :

* Case : Molded plastic

* Epoxy : UL94V-0 rate flame retardant

DF1502M Datasheet (151.00 KB)

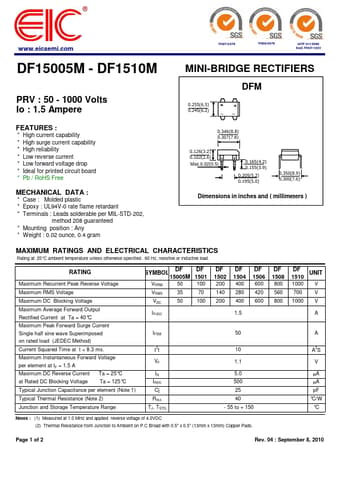

Preview of DF1502M PDF

Datasheet Details

Part number:

DF1502M

Manufacturer:

EIC

File Size:

151.00 KB

Description:

Surface mount bridge rectifiers.
www.eicsemi.com TH97/2478 TH09/2479 IATF 0113686 SGS TH07/1033 DF15005M - DF1510M MINI-BRIDGE RECTIFIERS PRV : 50 - 1000 Volts Io : 1.5 Ampere D.
