EG01 - ULTRA FAST RECOVERY RECTIFIER DIODES

Datasheet Summary

Features

  • :.
  • High current capability.
  • High surge current capability.
  • High reliability.
  • Low reverse current.
  • Low forward voltage drop.
  • Fast switching for high efficiency.
  • Pb / RoHS Free.

📥 Download Datasheet

Datasheet preview – EG01

Datasheet Details

Part number EG01
Manufacturer EIC
File Size 29.72 KB
Description ULTRA FAST RECOVERY RECTIFIER DIODES
Datasheet download datasheet EG01 Datasheet

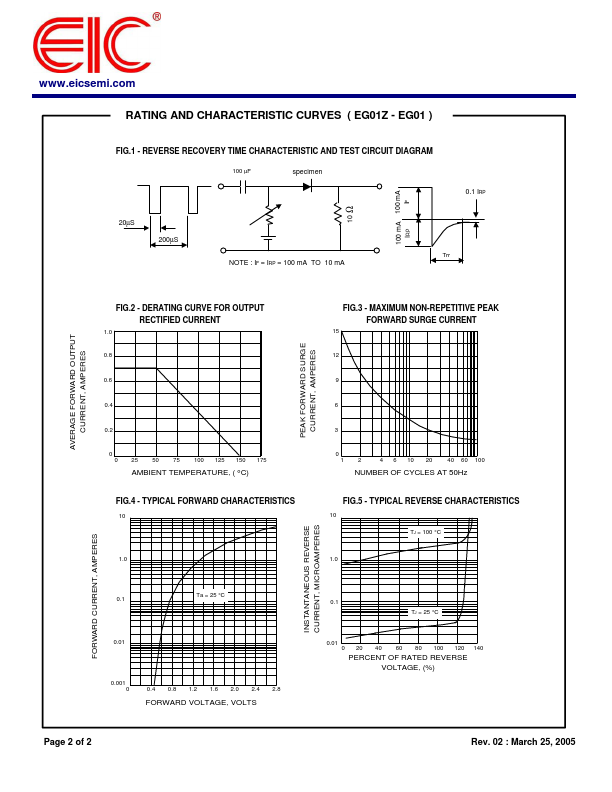

Additional preview pages of the EG01 datasheet.

📁 Similar Datasheet

  • EG01 - Fast Recovery Diode (Sanken electric)
  • EG01 - HIGH EFFICIENCY RECTIFIER (GALAXY ELECTRICAL)
  • EG01 - High Efficiency Rectifiers (LGE)
  • EG01A - Fast Recovery Diode (Sanken electric)
  • EG01A - HIGH EFFICIENCY RECTIFIER (GALAXY ELECTRICAL)
  • EG01A - High Efficiency Rectifiers (LGE)
  • EG01C - Fast Recovery Diode (Sanken electric)
  • EG01C - HIGH EFFICIENCY RECTIFIER (GALAXY ELECTRICAL)
  • EG01C - High Efficiency Rectifiers (LGE)
  • EG01Y - Ultra-Fast-Recovery Rectifier Diodes (Sanken electric)
Other Datasheets by EIC
  • EG01Z - ULTRA FAST RECOVERY RECTIFIER DIODES

Full PDF Text Transcription

Click to expand full text

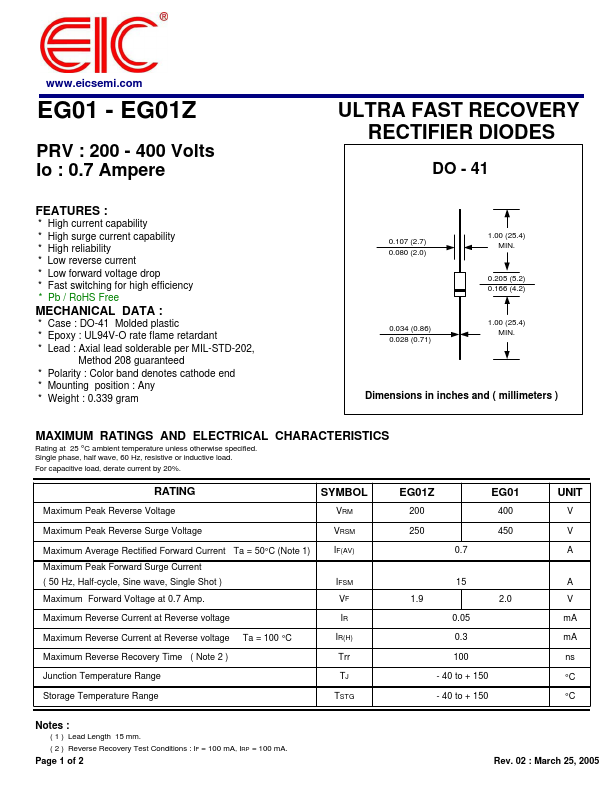

www.eicsemi.com EG01 - EG01Z PRV : 200 - 400 Volts Io : 0.7 Ampere ULTRA FAST RECOVERY RECTIFIER DIODES DO - 41 FEATURES : * High current capability * High surge current capability * High reliability * Low reverse current * Low forward voltage drop * Fast switching for high efficiency * Pb / RoHS Free MECHANICAL DATA : * Case : DO-41 Molded plastic * Epoxy : UL94V-O rate flame retardant * Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.339 gram 0.107 (2.7) 0.080 (2.0) 0.034 (0.86) 0.028 (0.71) 1.00 (25.4) MIN. 0.205 (5.2) 0.166 (4.2) 1.00 (25.4) MIN.
