EG01Z, EG01 ULTRA FAST RECOVERY RECTIFIER DIODES

EG01Z Description

www.eicsemi.com EG01 - EG01Z PRV : 200 - 400 Volts Io : 0.7 Ampere ULTRA FAST RECOVERY RECTIFIER DIODES DO - 41 .

EG01Z Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Fast switching for high efficiency
* Pb / RoHS Free MECHANICAL DATA :
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retar

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: EG01Z, EG01. Please refer to the document for exact specifications by model.

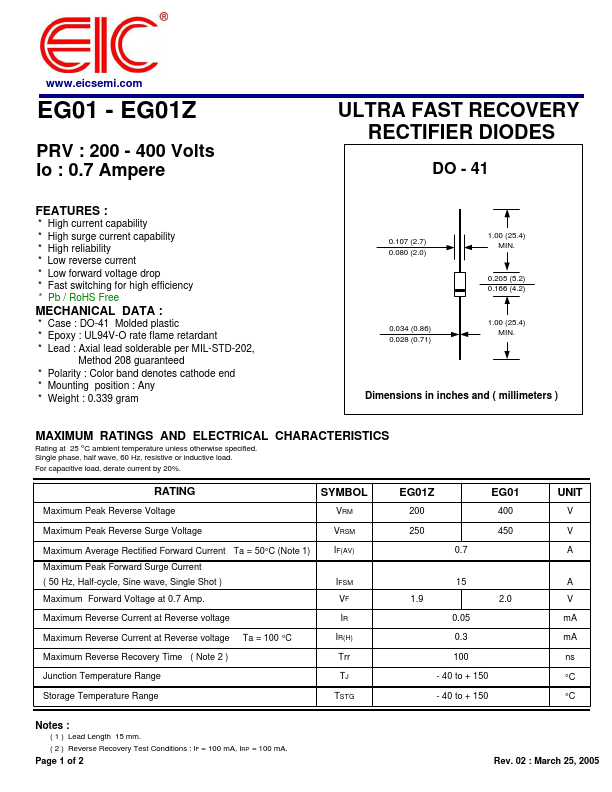

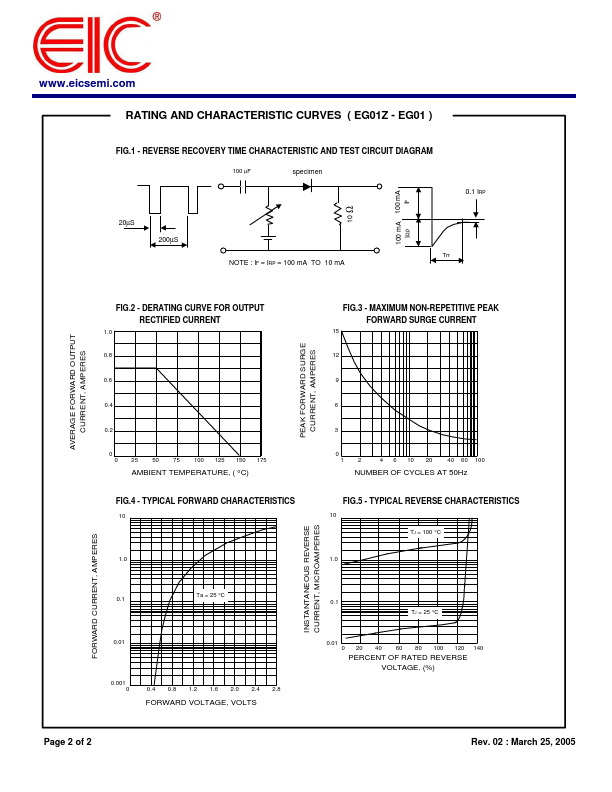

datasheet Preview Page 2

Datasheet Details

Part number
EG01Z, EG01
Manufacturer
EIC
File Size
29.72 KB
Datasheet
EG01-EIC.pdf
Description
ULTRA FAST RECOVERY RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: EG01Z, EG01.
Please refer to the document for exact specifications by model.
