FBR3508, FBR3500 - FAST RECOVERY BRIDGE RECTIFIERS

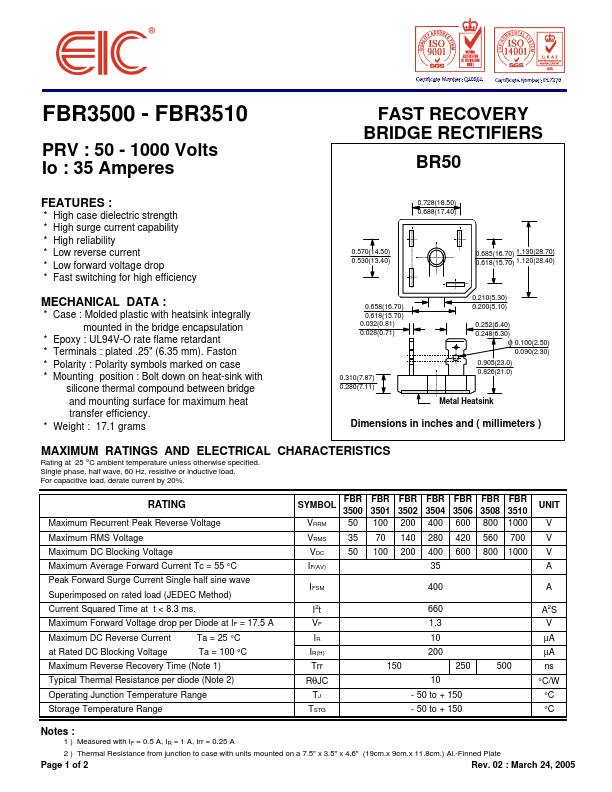

FBR3508 Description

FBR3500 - FBR3510 PRV : 50 - 1000 Volts Io : 35 Amperes FAST RECOVERY BRIDGE RECTIFIERS BR50 .

FBR3508 Features

* :
* High case dielectric strength
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Fast switching for high efficiency MECHANICAL DATA :
* Case : Molded plastic with heatsink integrally mounted in the bridge encapsulatio

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FBR3508, FBR3500. Please refer to the document for exact specifications by model.

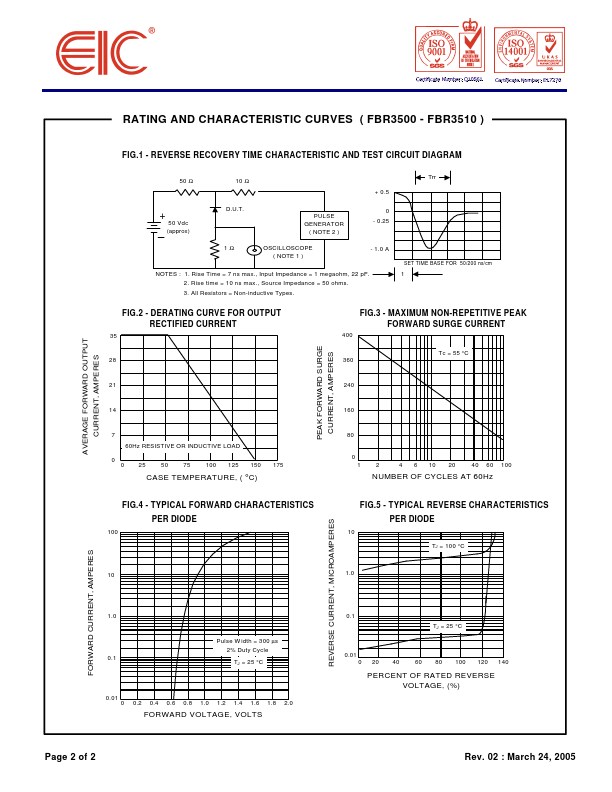

datasheet Preview Page 2

Datasheet Details

Part number
FBR3508, FBR3500
Manufacturer
EIC
File Size
41.48 KB
Datasheet
FBR3500-EIC.pdf
Description
FAST RECOVERY BRIDGE RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: FBR3508, FBR3500.
Please refer to the document for exact specifications by model.
