FR306, FR301 - FAST RECOVERY RECTIFIER DIODES

FR306 Description

www.eicsemi.com FR301 - FR307-STR PRV : 50 - 1000 Volts Io : 3.0 Amperes FAST RECOVERY RECTIFIER DIODES DO - 201AD .

FR306 Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free 0.208 (5.30) 0.188 (4.80) 1.00 (25.4) MIN. 0.374 (9.50) 0.283 (7.20) MECHANICAL DATA :
* Case : DO-201AD Molded plastic

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FR306, FR301. Please refer to the document for exact specifications by model.

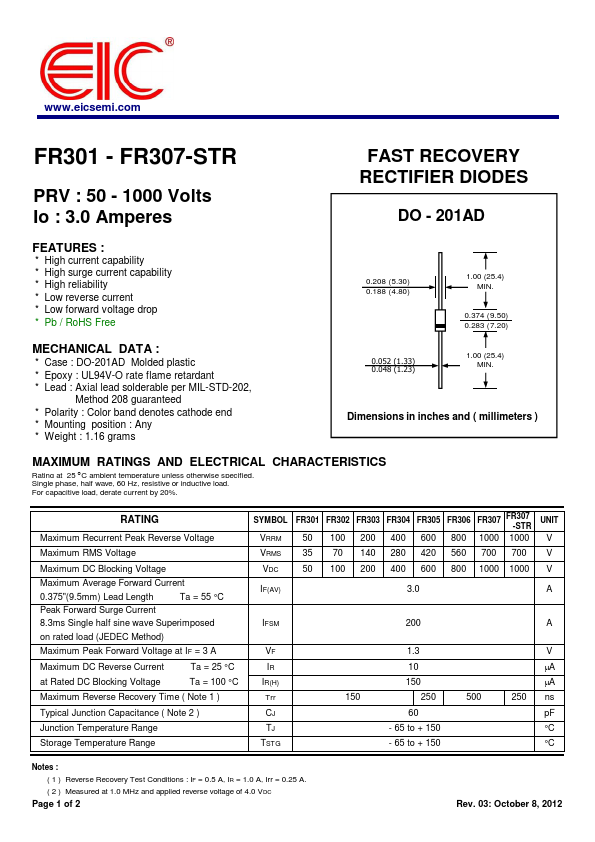

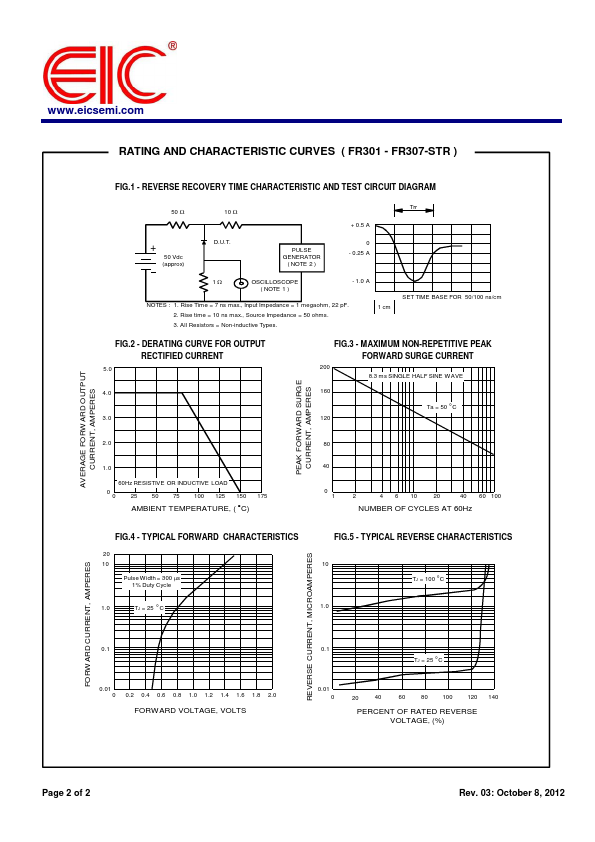

datasheet Preview Page 2

Datasheet Details

Part number
FR306, FR301
Manufacturer
EIC
File Size
65.27 KB
Datasheet
FR301-EIC.pdf
Description
FAST RECOVERY RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: FR306, FR301.
Please refer to the document for exact specifications by model.
