FR301GP - 3 Amp Fast Recovery Rectifier

Datasheet Summary

Features

omponents 21201 Itasca Street Chatsworth !"# $ % !"# FR301GP THRU FR307GP 3 Amp Fast Recovery Rectifier 50 to 1000 Volts DO-201AD Low Cost Low Leakage Low Forward Voltage Drop High Current Capability Fast Switching Speed For High Efficiency Glass Passivated Junction Maximum Ratings.
MCC Catalog Number FR301GP FR302GP FR303GP FR304GP FR305GP FR306GP FR30.

Datasheet Details

Part number	FR301GP
Manufacturer	MCC
File Size	80.94 KB
Description	3 Amp Fast Recovery Rectifier
Datasheet	FR301GP Datasheet

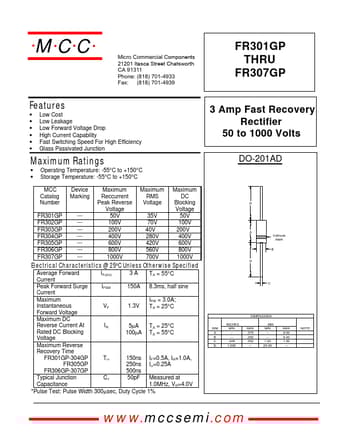

Additional preview pages of the FR301GP datasheet.

📁 Similar Datasheet

FR301G - FAST RECOVERY GLASS PASSIVATED RECTIFIER (Rectron)

FR301G - 3.0 AMPS. GLASS PASSIVATED FAST RECOVERY RECTIFIERS (Jinan Gude Electronic Device)

FR301G - FAST RECOVERY GLASS PASSIVATED RECTIFIER (Dc Components)

FR301G - GLASS PASSIVATED JUNCTION FAST RECOVERY RECTIFIERS (EIC discrete)

FR301G - 3.0AMP GLASS PASSIVATED FAST RECOVERY RECTIFIERS (Formosa MS)

FR301G - GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER (GOOD-ARK Electronics)

FR301G - 3.0A Leaded Type Fast Recovery Rectifiers (American First Semiconductor)

FR301G - Glass Passivated Fast Recovery Rectifiers (LGE)

FR301G - Glass Passivated Fast Recovery Rectifiers (SeCoS)

FR301G - FAST RECOVERY GLASS PASSIVATED RECTIFIER (MIC)

Full PDF Text Transcription

Click to expand full text

MCC Features • • • • • • omponents 21201 Itasca Street Chatsworth !"# $ % !"# FR301GP THRU FR307GP 3 Amp Fast Recovery Rectifier 50 to 1000 Volts DO-201AD Low Cost Low Leakage Low Forward Voltage Drop High Current Capability Fast Switching Speed For High Efficiency Glass Passivated Junction Maximum Ratings • • MCC Catalog Number FR301GP FR302GP FR303GP FR304GP FR305GP FR306GP FR307GP Device Marking Operating Temperature: -55°C to +150°C Storage Temperature: -55°C to +150°C Maximum Reccurrent Peak Reverse Voltage 50V 100V 200V 400V 600V 800V 1000V Maximum RMS Voltage 35V 70V 40V 280V 420V 560V 700V Maximum DC Blocking Voltage 50V 100V 200V 400V 600V 800V 1000V D --------------- A Cathode Mark B Electrical Characteristics
