FR303G - GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER

This page provides the datasheet information for the FR303G, a member of the FR303G_GOOD GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER family.

Datasheet Summary

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-0 utilizing Flame retardant epoxy molding compound Glass passivated junction in DO-201AD package 3.0 ampere operation at TA=55 with no thermal runaway Fast switching for high efficiency Mechanical Data Case: Molded plastic, DO-201AD Terminals: Axial leads, solderable per MIL-STD-202, method 208 Polarity: Band denotes cathode Mounting Position: Any Weight: 0.042 ounce, 1.195 grams DIM.

📥 Download Datasheet

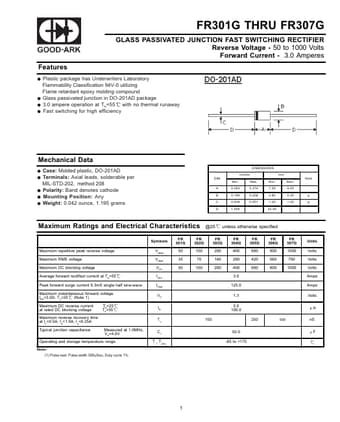

Datasheet preview – FR303G

Datasheet Details

Part number FR303G
Manufacturer GOOD-ARK Electronics
File Size 196.54 KB
Description GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER
Datasheet download datasheet FR303G Datasheet
Additional preview pages of the FR303G datasheet.
