G240 Datasheet - EIC

G240 SIDACs

www.DataSheet4U.com G105 ~ G270 IT(RSM) = 1.0 Amperes VBO = 95 thru 280 Volts SIDACs DO - 41 0.107 (2.7) 0.080 (2.0) 1.00 (25.4) MIN. MECHANICAL DATA : Case : DO-41 Molded plastic Epoxy : UL94V-O rate flame retardant Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed Polarity : Color band denotes cathode end Mounting position : Any Weight : 0.339 gram Pb / RoHS Free 0.034 (0.86) 0.028 (0.71) 0.205 (5.2) 0.166 (4.2) 1.00 (25.4) MIN.

G240 Datasheet (51.31 KB)

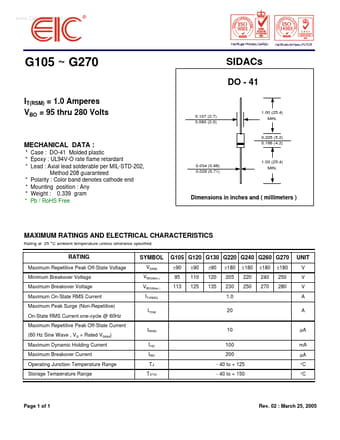

G240 Datasheet Preview — Preview of G240 PDF

Datasheet Details

Part number:

G240

Manufacturer:

EIC

File Size:

51.31 KB

Description:

Sidacs.
