GN13, GN1A GLASS PASSIVATED JUNCTION SILICON SURFACE MOUNT

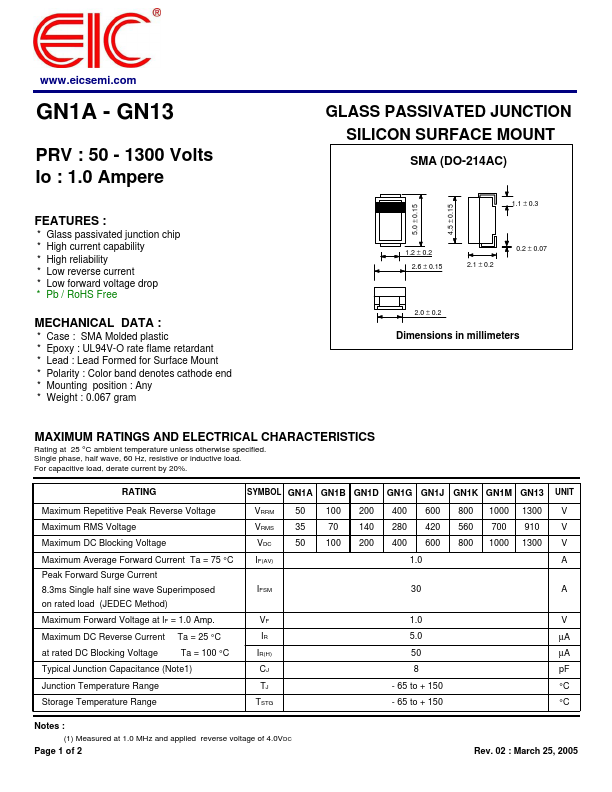

📥 Download Datasheet Datasheet Preview Page 1

Description

www.eicsemi.com GN1A - GN13 PRV : 50 - 1300 Volts Io : 1.0 Ampere .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GN13, GN1A. Please refer to the document for exact specifications by model.

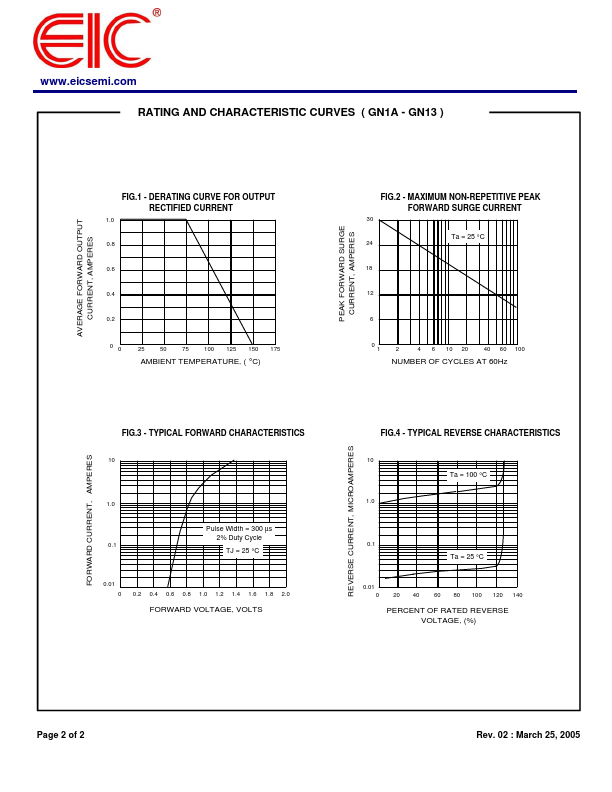

datasheet Preview Page 2

Datasheet Specifications

Part number
GN13, GN1A
Manufacturer
EIC
File Size
31.01 KB
Datasheet
GN1A-EIC.pdf
Description
GLASS PASSIVATED JUNCTION SILICON SURFACE MOUNT
Note
This datasheet PDF includes multiple part numbers: GN13, GN1A.
Please refer to the document for exact specifications by model.

Features

* :
* Glass passivated junction chip
* High current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : SMA Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Lead Formed for Surface
