HVR125 - HIGH VOLTAGE RECTIFIER DIODES

EIC

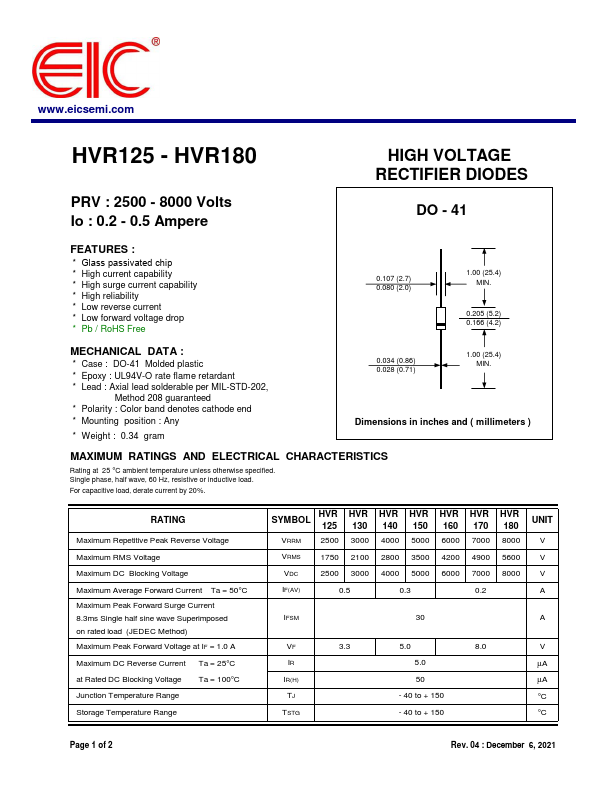

The HVR125 by EIC is a HIGH VOLTAGE RECTIFIER DIODES. Below is the official datasheet preview.

📥 Download Datasheet

HVR125 HIGH VOLTAGE RECTIFIER DIODES by EIC - Datasheet Preview — Official preview page of the HVR125 HIGH VOLTAGE RECTIFIER DIODES datasheet (EIC).

Datasheet Details

Part number	HVR125
Manufacturer	EIC
File Size	104.48 KB
Description	HIGH VOLTAGE RECTIFIER DIODES
Datasheet	HVR125-EIC.pdf

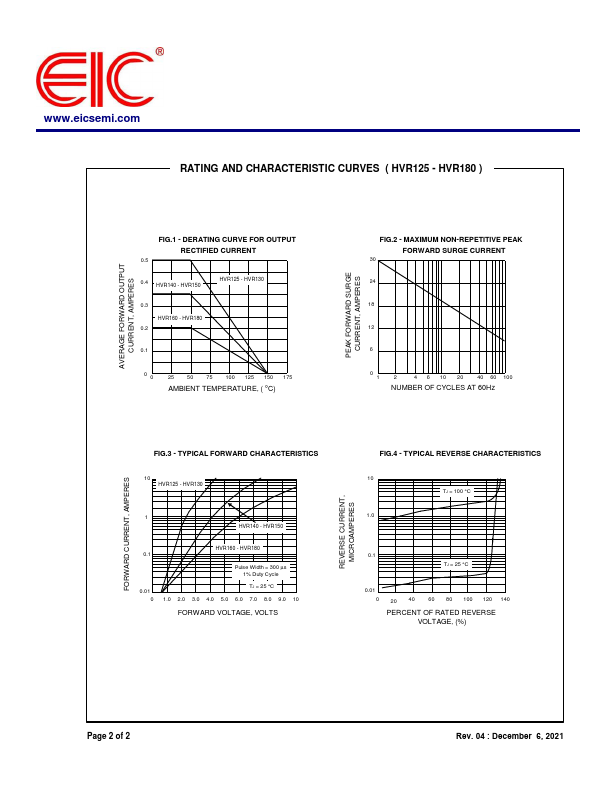

Additional preview pages of the HVR125 datasheet.

HVR125 Product details

Features

:.
Glass passivated chip.
High current capability.
High surge current capability.
High reliability.
Low reverse current.
Low forward voltage drop.
Pb / RoHS Free 0.107 (2.7) 0.080 (2.0) 1.00 (25.4) MIN. 0.205 (5.2) 0.166 (4.2).
