HVR140, HVR125 - HIGH VOLTAGE RECTIFIER DIODES

EIC

📥 Download Datasheet

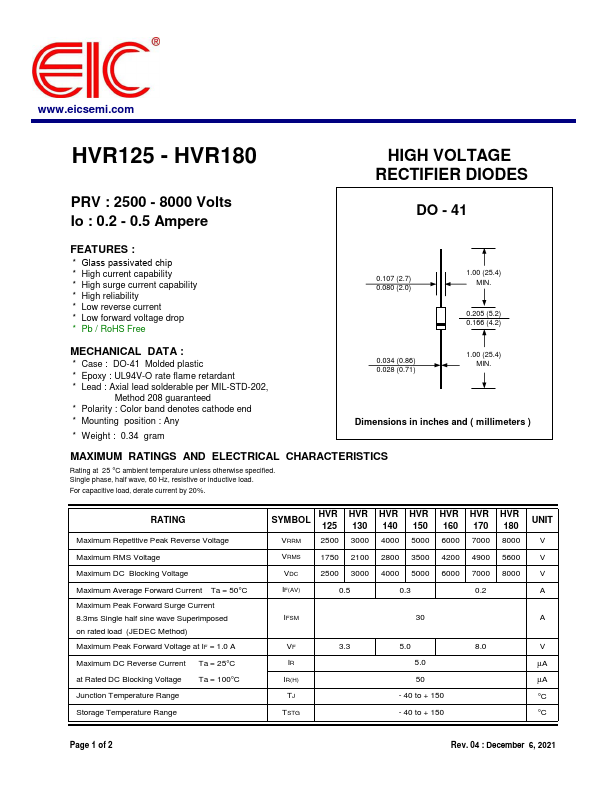

HVR140 Datasheet Preview — This datasheet PDF includes multiple part numbers: HVR140, HVR125. Please refer to the document for exact specifications by model.

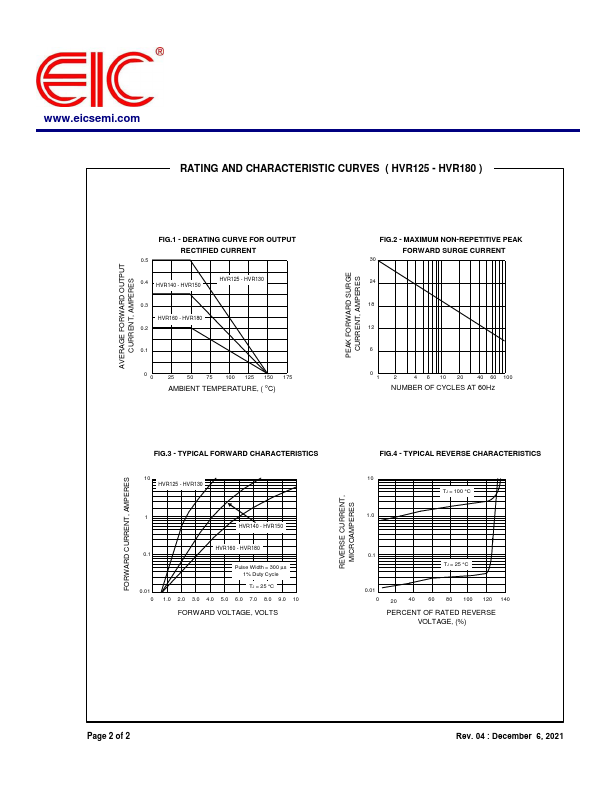

datasheet Preview Page 2

Datasheet Details

Part number	HVR140, HVR125
Manufacturer	EIC
File Size	104.48 KB
Description	HIGH VOLTAGE RECTIFIER DIODES
Datasheet	HVR125-EIC.pdf
Note	This datasheet PDF includes multiple part numbers: HVR140, HVR125. Please refer to the document for exact specifications by model.

HVR140 Product details

Features

:.
Glass passivated chip.
High current capability.
High surge current capability.
High reliability.
Low reverse current.
Low forward voltage drop.
Pb / RoHS Free 0.107 (2.7) 0.080 (2.0) 1.00 (25.4) MIN. 0.205 (5.2) 0.166 (4.2).
