HZS18 - ZENER DIODES

This page provides the datasheet information for the HZS18, a member of the HZS4 ZENER DIODES family.

Datasheet Summary

Features

  • :.
  • Low leakage, low zener impedance.
  • Maximum power dissipation of 400 mW.
  • Lead / RoHS Free.

📥 Download Datasheet

Datasheet preview – HZS18

Datasheet Details

Part number HZS18
Manufacturer EIC
File Size 133.58 KB
Description ZENER DIODES
Datasheet download datasheet HZS18 Datasheet

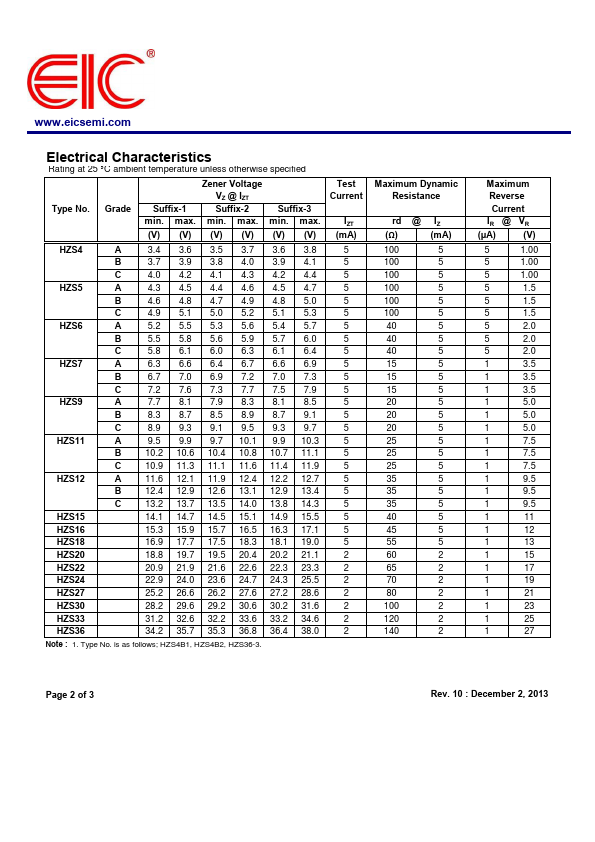

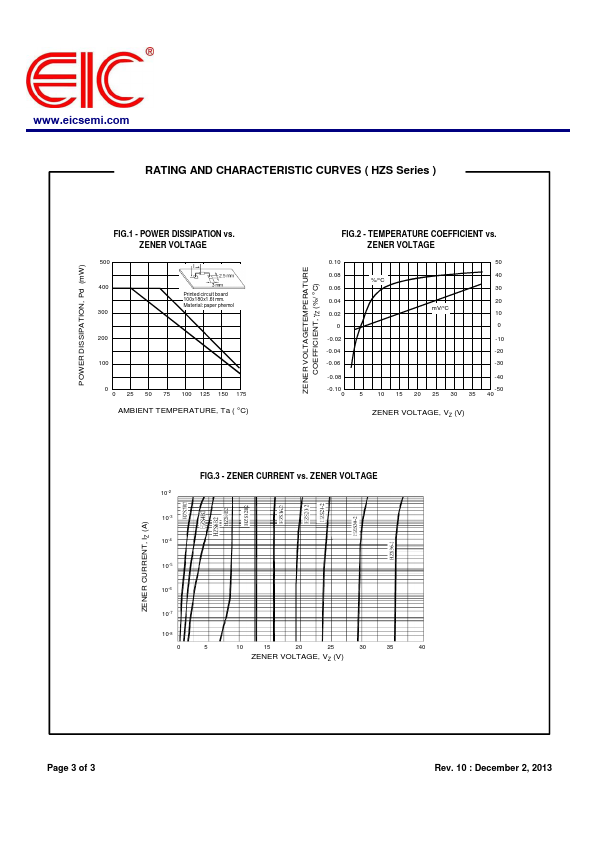

Additional preview pages of the HZS18 datasheet.

📁 Similar Datasheet

  • HZS18 - Silicon Epitaxial Planar Zener Diode (Renesas)
  • HZS18 - Silicon Epitaxial Planar Zener Diode for Stabilized Power Supply (Hitachi)
  • HZS18-1L - Silicon Planar Zener Diode (Renesas)
  • HZS18-2L - Silicon Planar Zener Diode (Renesas)
  • HZS18-3L - Silicon Planar Zener Diode (Renesas)
  • HZS181 - SILICON EPITAXIAL PLANER ZENER DIODES (SEMTECH)
  • HZS182 - SILICON EPITAXIAL PLANER ZENER DIODES (SEMTECH)
  • HZS183 - SILICON EPITAXIAL PLANER ZENER DIODES (SEMTECH)
  • HZS1 - Silicon Epitaxial Planar Zener Diode for Stabilized Power Supply (Hitachi)
  • HZS11 - Silicon Epitaxial Planar Zener Diode (Renesas)
Other Datasheets by EIC

Full PDF Text Transcription

Click to expand full text

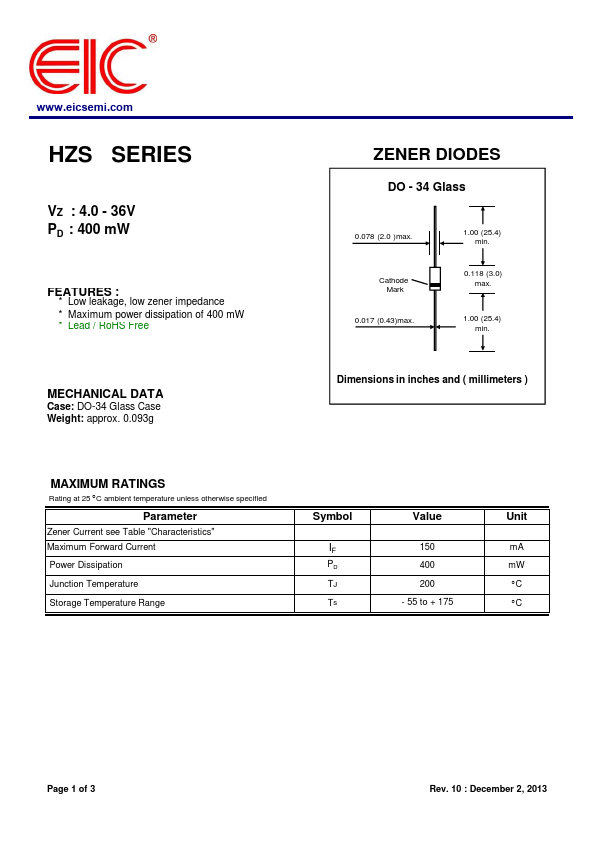

www.eicsemi.com HZS SERIES VZ : 4.0 - 36V PD : 400 mW FEATURES : * Low leakage, low zener impedance * Maximum power dissipation of 400 mW * Lead / RoHS Free MECHANICAL DATA Case: DO-34 Glass Case Weight: approx. 0.093g ZENER DIODES DO - 34 Glass 0.078 (2.0 )max. Cathode Mark 0.017 (0.43)max. 1.00 (25.4) min. 0.118 (3.0) max. 1.00 (25.4) min. Dimensions in inches and ( millimeters ) MAXIMUM RATINGS Rating at 25 °C ambient temperature unless otherwise specified Parameter Zener Current see Table "Characteristics" Maximum Forward Current Power Dissipation Junction Temperature Storage Temperature Range Symbol IF PD TJ Ts Value 150 400 200 - 55 to + 175 Unit mA mW °C °C Page 1 of 3 Rev. 10 : December 2, 2013 www.eicsemi.
