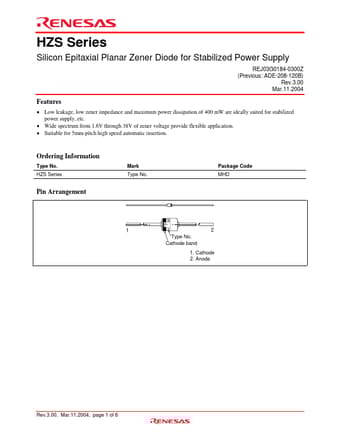

HZS Series
Silicon Epitaxial Planar Zener Diode for Stabilized Power Supply
REJ03G0184-0300Z (Previous: ADE-208-120B)
Rev.3.00 Mar.11.2004
Features
• Low leakage, low zener impedance and maximum power dissipation of 400 mW are ideally suited for stabilized power supply, etc.
• Wide spectrum from 1.6V through 38V of zener voltage provide flexible application. • Suitable for 5mm-pitch high speed automatic insertion.
Ordering Information
Type No. HZS Series
Pin Arrangement
Mark Type No.
Package Code MHD
B
7
12
2
Type No.
Cathode band
1. Cathode 2. Anode
Rev.3.00, Mar.11.
HZS11 Datasheet
